Overview

The OLake Go MongoDB Source connector supports multiple synchronization modes. It offers features like parallel chunking, checkpointing, and automatic resume for failed full loads. This connector can be used within the OLake UI or run locally via Docker for open-source workflows.

Sync Modes Supported

• Full Refresh
• Full Refresh + Incremental
• Full Refresh + CDC
• CDC Only

Prerequisites

Version Prerequisites

MongoDB Version 4.0 or higher

CDC Prerequisites

For Change Data Capture (CDC) mode, MongoDB must meet the following requirements:

• MongoDB must be running in replica set mode (--replSet rs0)
• oplog must be enabled (automatic in replica sets)

info

1. CDC in OLake Go is not a continuous always-on process. It requires execution through the Orchestrator.

2. If you don’t have access to enable CDC (replica sets + oplog), OLake Go also supports Incremental sync.

To set up MongoDB for CDC, please refer to the MongoDB and Atlas CDC Setup guide.

For local setup, follow MongoDB via Docker Compose.

Connection Prerequisites

• Read access to the tables for the MongoDB user.

After initial Prerequisites are fulfilled, the configurations for MongoDB can be configured.

Configuration

Use OLake UI for MongoDB

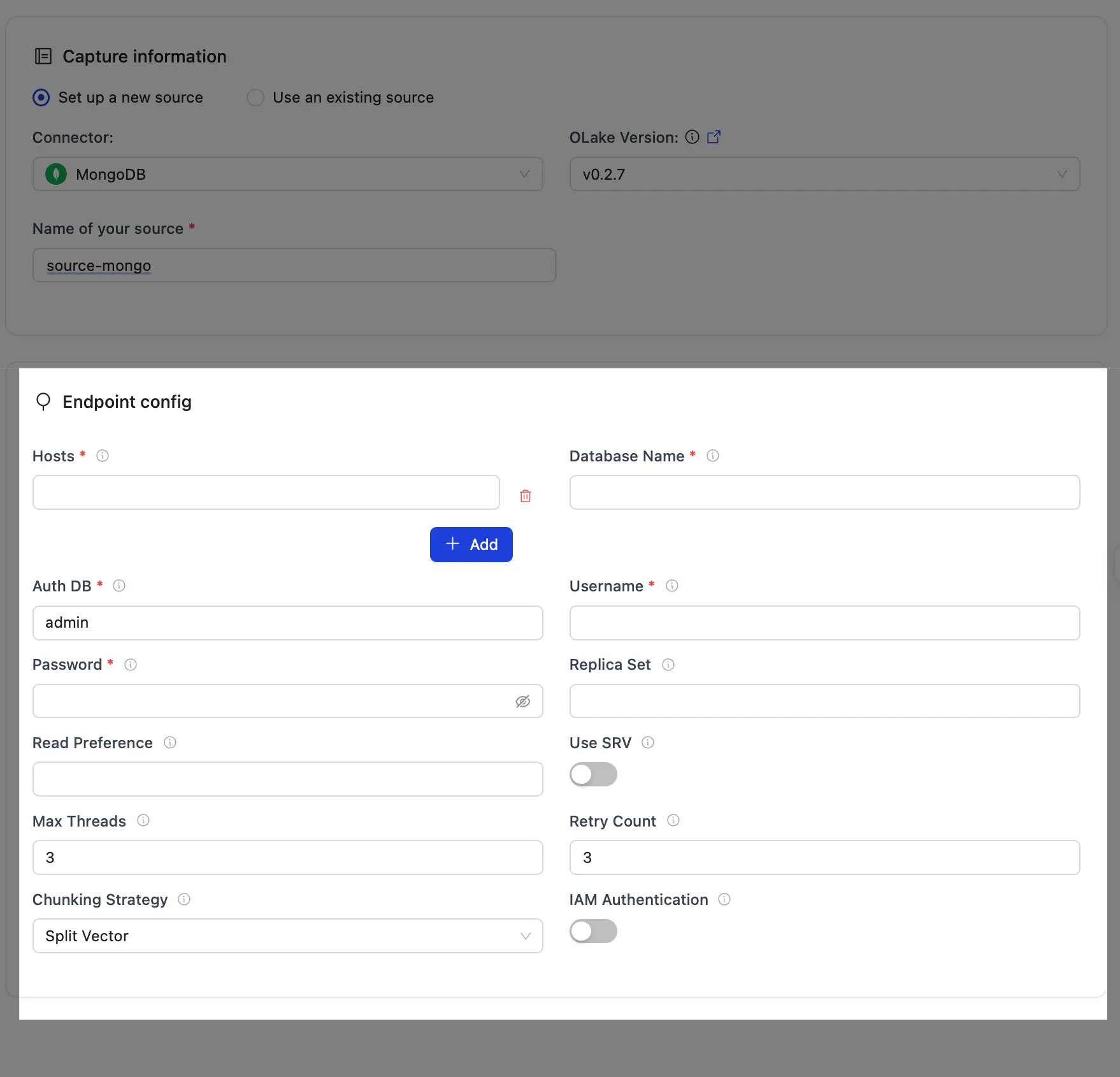

1. Navigate to the Source Configuration Page

1. Complete the OLake UI Setup Guide
2. After logging in to the OLake UI, select the Sources tab from the left sidebar.
3. Click Create Source on the top right corner.
4. Select MongoDB from the connector dropdown
5. Provide a name for this source.

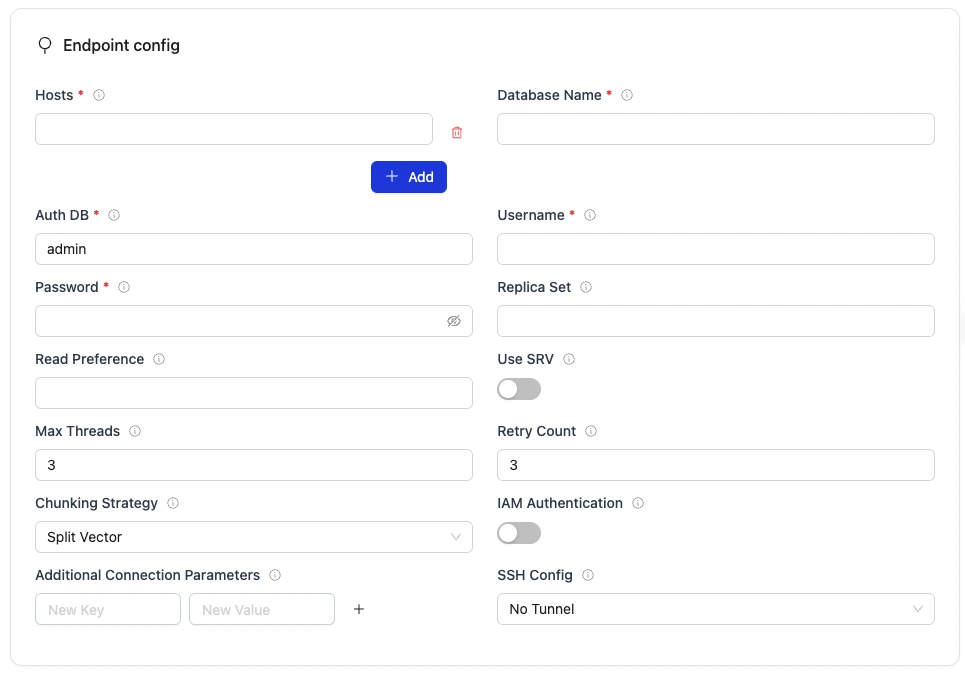

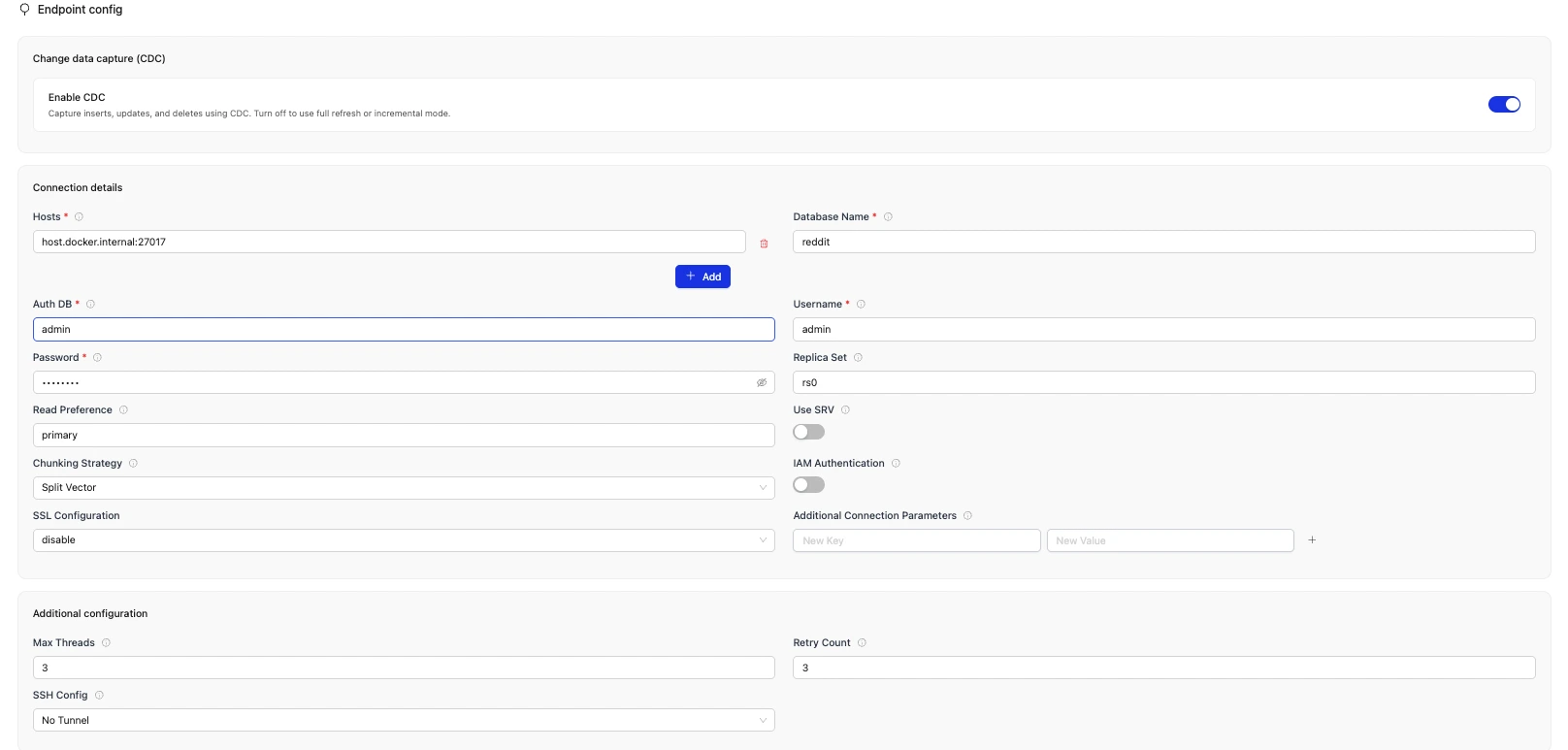

2. Provide Configuration Details

• Enter MongoDB credentials.

Change data capture (CDC)

Field	Description	Example Value
Enable CDC	Enables change data capture to sync like inserts, updates, and deletes. When disabled, supports only Full Refresh and Incremental sync modes.	Enabled (default)

Connection details

Field	Description	Example Value
Hosts required	List of MongoDB hosts. Use DNS SRV format if srv = true	x.xxx.xxx.120:27017, x.xxx.xxx.133:27017 (multiple hosts supported)
Database Name required	Target MongoDB database name to replicate	my-db
Auth DB required	Authentication database name. Optional when IAM Authentication is enabled.	admin-db
Username required	MongoDB authentication username. Optional when IAM Authentication is enabled.	mongo-user
Password required	MongoDB authentication password. Optional when IAM Authentication is enabled.	mongo-pwd
Replica Set	Name of the replica set (if applicable)	rs0
Read Preference	MongoDB read preference setting	secondaryPreferred
Use SRV	Enable DNS SRV connection strings. When true, only one host allowed in hosts field	false
Chunking Strategy	Data chunking strategy: timestamp, splitVector. Defaults to splitVector if empty	splitVector
IAM Authentication	Turn on to use IAM credentials stored in host machine instead of Username and Password	off
Additional Connection Parameters	Additional MongoDB connection string parameters (e.g., authMechanism). Each parameter will be added to the connection URI	authMechanism=SCRAM-SHA-256
SSL Mode	Defines whether the connection to the database is encrypted over TLS/SSL. Needed to meet security requirements and connect to databases that do not allow plain-text traffic.	require disable verify-ca verify-full

Additional configuration

Field	Description	Example Value
Max Threads	Maximum parallel threads for chunk-based snapshotting	3
Retry Count	Number of retry attempts with exponential backoff.	3
SSH Config	Configure OLake Go to connect through an SSH tunnel.	No Tunnel SSH Key Authentication SSH Password Authentication

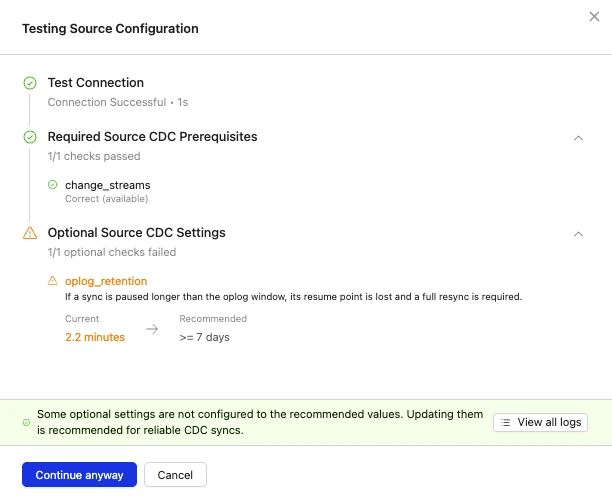

3. Test Connection

• Click Set up source to validate the configuration. The test performs three checks:



  1. Connection validation: Verifies that OLake Go can reach the MongoDB deployment using the provided hosts, credentials, SSL settings, and other connection options.

  2. Required CDC prerequisites validation (when CDC is enabled): Evaluates required server-side settings to ensure reliable CDC operation:

     • change_streams: Change streams must be available

  3. Optional CDC prerequisites validation (when CDC is enabled): Evaluates optional server-side settings:

     • oplog_retention: Oplog retention must be sufficient for expected sync pauses

• If any required check fails, the test connection will show the current and recommended values. Fix the server-side settings and retry the connection.

• If any optional check fails, the test connection will show the current and recommended values. You can fix the server-side settings and retry, or continue and create the source without making changes.

• If all checks pass, the MongoDB source is created successfully. Jobs can then be configured using this source.

• In case of connection failure, refer to the Troubleshooting section.

Use OLake CLI for MongoDB

1. Create Configuration File

• Once the OLake CLI is setup, create a folder to store configuration files such as source.json and destination.json.

2. Provide Configuration Details

An example source.json file will look like this:

source.json

{
  "hosts": ["host1:27017", "host2:27017", "host3:27017"],
  "username": "your_username",
  "password": "your_password",
  "authdb": "admin",
  "replica_set": "rs0",
  "read_preference": "secondaryPreferred",
  "srv": false,
  "database": "your_db",
  "ssl": {
        "mode": "disable"
  },
  "use_iam": false,
  "chunking_strategy": "",
  "max_threads": 3,
  "backoff_retry_count": 3,
  "update_method": {
    "type": "CDC"
  },
  "ssh_config": {
        "host": "my-tunnel-host",
        "port": 22,
        "username": "my-tunnel-user",
        "password": "tunnel-password"
    }
}

Field	Description	Example Value	Type
hosts required	List of MongoDB hosts. Use DNS SRV format if srv = true	["x.xxx.xxx.120:27017", "x.xxx.xxx.133:27017"]	STRING []
username required	MongoDB authentication username. Optional when use_iam is set to true.	"mongo-user"	STRING
password required	MongoDB authentication password. Optional when use_iam is set to true.	"mongo-pwd"	STRING
authdb required	Authentication database name. Optional when use_iam is set to true.	"admin-db"	STRING
replica_set	Name of the replica set (if applicable)	"rs0"	STRING
read_preference	MongoDB read preference setting	"secondaryPreferred"	STRING
srv	Enable DNS SRV connection strings. When true, only one host allowed in hosts field	false	BOOLEAN
database required	Target MongoDB database name to replicate	"my-db"	STRING
update_method required	Configures how OLake Go captures changes from MongoDB.	{"type": "CDC"}: CDC sync modes (Full Refresh + CDC, CDC Only) {"type": "Standalone"}: Full Refresh and Incremental	OBJECT
max_threads	Maximum parallel threads for chunk-based snapshotting	3	INTEGER
backoff_retry_count	Number of retry attempts with exponential backoff.	3	INTEGER
chunking_strategy	Data chunking strategy: timestamp, splitVector. Defaults to splitVector	"splitVector"	STRING
use_iam	Use IAM credentials stored in host machine instead of username and pasword	false	BOOLEAN
additional_params	Additional MongoDB connection string parameters (e.g., authMechanism). Each parameter will be added to the connection URI	authMechanism=SCRAM-SHA-256	DICTIONARY
ssh_config	Configure OLake Go to connect through an SSH tunnel.	{"host": "my-tunnel-host", "port": 22 , "username": "my-tunnel-user", "password": "tunnel-password"}	OBJECT
ssl*	Defines whether the connection to the database is encrypted over TLS/SSL. Needed to meet security requirements and connect to databases that do not allow plain-text traffic.	require disable verify-ca verify-full	OBJECT

* See SSL Mode Details below for supported modes and example configurations.

SSL Mode Details

SSL Mode

The following SSL modes are supported:

1. Disable

No TLS/SSL encryption. Suitable for databases that allow plain-text connections.

• SSL Mode: disable

Example Configuration:

json

"ssl": {
  "mode": "disable"
}

2. Require

Encrypted connection without certificate verification.

• SSL Mode: require

Example Configuration:

json

"ssl": {
  "mode": "require"
}

3. Verify-CA

Encrypted connection with CA certificate verification.

• SSL Mode: verify-ca
• Required parameters: server_ca
• Optional parameters: client_cert, client_key

Example Configuration:

json

"ssl": {
  "mode": "verify-ca",
  "server_ca": " ",
  "client_cert": " ",
  "client_key": " "
}

4. Verify-Full

Encrypted connection with CA and hostname verification.

• SSL Mode: verify-full
• Required parameters: server_ca
• Optional parameters: client_cert, client_key

Example Configuration:

json

"ssl": {
  "mode": "verify-full",
  "server_ca": " ",
  "client_cert": " ",
  "client_key": " "
}

Similarly, destination.json file can be created inside this folder. For more information, see destination documentation.

3. Check Source Connection

To verify the database connection following command needs to be run:

check command

docker run --pull=always \
-v "[PATH_OF_CONFIG_FOLDER]:/mnt/config" \
olakego/source-mongodb:latest \
check \
--config /mnt/config/source.json

• The check command runs three validations:

  1. Connection validation: Verifies that OLake Go can reach the MongoDB deployment using the settings in source.json (hosts, credentials, SSL, and related connection options).

  2. Required CDC prerequisites validation (when CDC is configured via update_method): Evaluates required server-side settings to ensure reliable CDC operation:

     • change_streams: Change streams must be available

  3. Optional CDC prerequisites validation (when CDC is configured via update_method): Evaluates optional server-side settings:

     • oplog_retention: Oplog retention must be sufficient for expected sync pauses

• If connection validation and all required checks pass, OLake Go returns a connection status payload that includes each prerequisite check and status: SUCCEEDED. For example:

  json

  {
    "connectionStatus": {
      "prerequisites": [
        {
          "current_value": "1.2 minutes",
          "description": "If a sync is paused longer than the oplog window, its resume point is lost and a full resync is required.",
          "name": "oplog_retention",
          "passed": false,
          "recommended_value": ">= 7 days",
          "required": false
        },
        {
          "current_value": "available",
          "description": "OLake cannot open a change stream, so CDC cannot run.",
          "name": "change_streams",
          "passed": true,
          "recommended_value": "replica set or sharded cluster, read role on the database",
          "required": true
        }
      ],
      "status": "SUCCEEDED"
    },
    "type": "CONNECTION_STATUS"
  }

• If a required CDC prerequisite check fails, the response includes the current and recommended values for the failing settings. Update the server configuration and run check again.

• If an optional CDC prerequisite check fails, the response includes the current and recommended values for the failing settings. You can update the server configuration and run check again, or proceed to create the source without making changes.

• In case of connection failure, refer to the Troubleshooting section.

---

Data Type Mapping

MongoDB Data Types	Destination Data Type
int, timestamp	int
long	bigint
double	double
boolean	boolean
date	timestamptz
string, object, objectId, binData (binary), code, regex (BSONRegExp), decimal128, maxKey, minKey, array, undefined	string

timestamptz timezone

OLake Go always ingests timestamp data in UTC format, independent of the source timezone.

---

Date and Time Handling

During transfer, values in date, time, and timestamp columns are modified to ensure valid calendar ranges and destination compatibility.

• Case I (Year 0000):
  Source dates with year 0000 are not valid in most destinations, so we change them to the epoch start date.
  Example: 0000-05-10 → 1970-01-01
• Case II (Year > 9999):
  Extremely large years are capped at 9999. The month and date are not affected.
  Examples: 10000-03-12 → 9999-03-12
• Case III (Invalid month/day):
  When the month or day exceeds valid ranges (i.e. month > 12 or day > 31), or the combined date is invalid, the value is replaced with the epoch start date.
  Examples: 2024-13-15 → 1970-01-01, 2023-04-31 → 1970-01-01

Note

These rules apply to date, time, and timestamp columns during transfer.

---

Troubleshooting

1. Connection Failed (UI/CLI):

Cause: Wrong host/port, MongoDB not running.

Solution: Check the port number entered is correct and MongoDB is up and accessible.

2. CDC Not Working:

Cause: MongoDB not in replica set / oplog not accessible

Solution: Verify replica set is active by running rs.status()

3. File not found (CLI):

Cause: Not in correct directory while running commands

Solution: Make sure both source.json is present in correct directory and the commands are executed while inside the directory

4. file name too long & FATAL error occurred while reading records: failed to finish backfill chunk 381: main writer closed:

Cause: The generated file or directory name exceeded the Linux limit of 255 bytes (often happens when partitioning on very long string values).

bash

2025-02-17T07:03:00Z ERROR main writer closed, with error: failed to create parititon file: failed to create directories[output/otter_db/stream_8/H.

Solution: The max filename length is 255 bytes and this error shows that you have excceded that limit for file creation (might happen if you partion based on STRING field that contain values that are too large). Usually in a linux system, these limits are defined at:

bash

cat /usr/include/linux/limits.h

...
#define NAME_MAX         255    /* # chars in a file name */
#define PATH_MAX        4096    /* # chars in a path name including nul */
...

---

Changelog

Date of Release	Version	Description
Aug 27, 2025	v0.1.11	override default timeout in Discover

---
