Overview

The OLake MySQL Source connector supports multiple sync modes. It also offers features like parallel chunking, checkpointing, and automatic resume for failed full loads. This connector can be used within the OLake UI or run locally via Docker for open-source workflows.

Sync Modes Supported

• Full Refresh
• Full Refresh + CDC
• CDC Only
• Full Refresh + Incremental

Connection Prerequisites

Version Prerequisites

MySQL Version: MySQL 5.7+

CDC Prerequisite

• Binary Logging (Required):

  • log_bin=ON
  • binlog_format=ROW
  • binlog_row_image=FULL
  • binlog_row_metadata=FULL

• Server Config: Set unique server-id.

• Access & Permissions: REPLICATION SLAVE, REPLICATION CLIENT, and SELECT privileges.

• For detailed setup for different MySQL environments, see the guides in the section below.

  • Aurora MySQL – CDC Setup Guide
  • Amazon RDS MySQL – CDC Setup Guide
  • MySQL via Docker Compose – Local Setup
  • Azure Database for MySQL – CDC Setup Guide
  • Google Cloud SQL for MySQL – CDC Setup Guide
  • Generic MySQL – CDC Setup Guide

Connection Prerequisites

• Read access to the tables for the MySQL user.

After initial Prerequisites are fulfilled, the configurations for MySQL can be configured.

---

Configuration

Use Olake UI for MySQL

1. Navigate to the Source Configuration Page

1. Complete the OLake UI Setup Guide
2. After logging in to the OLake UI, select the Sources tab from the left sidebar.
3. Click Create Source on the top right corner.
4. Select MySQL from the connector dropdown
5. Provide a name for this source.

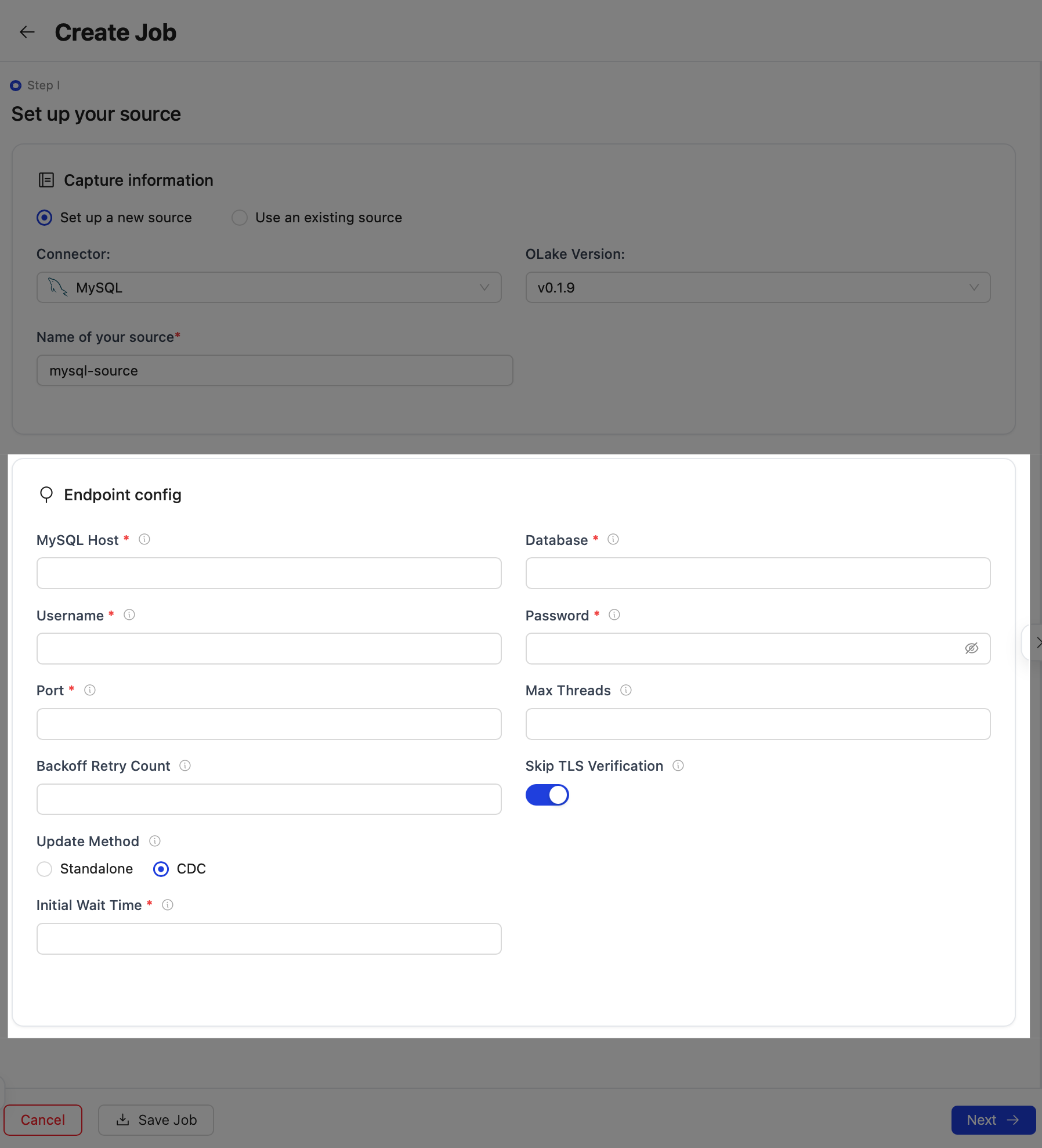

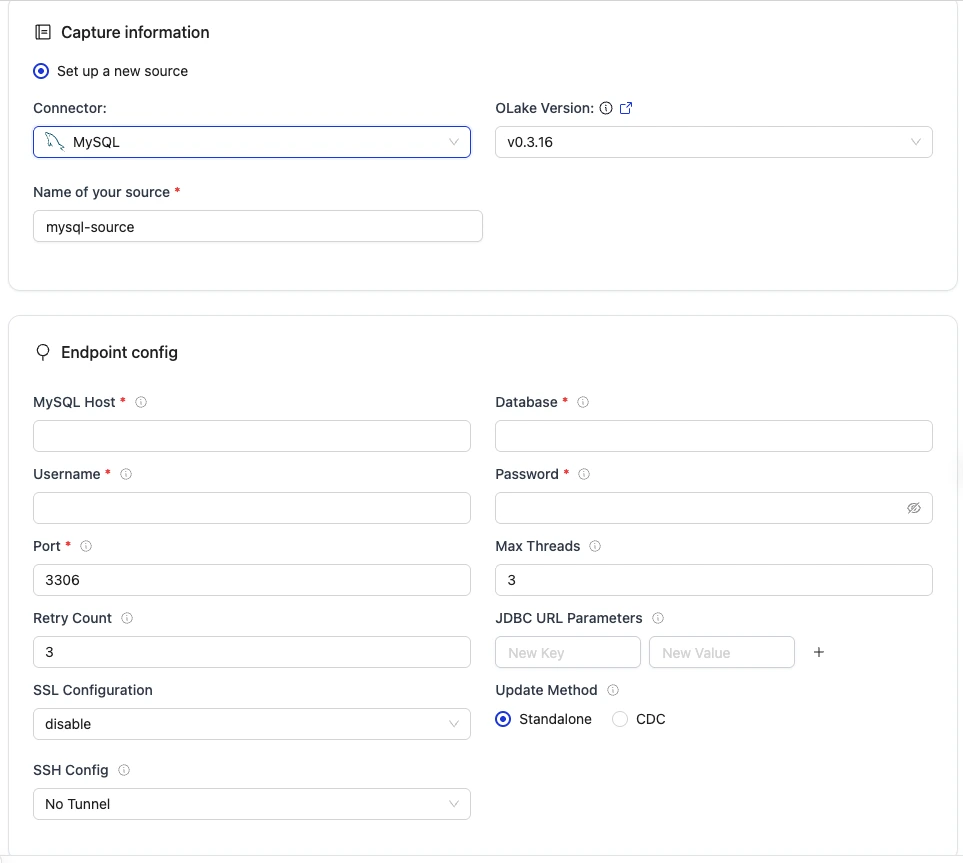

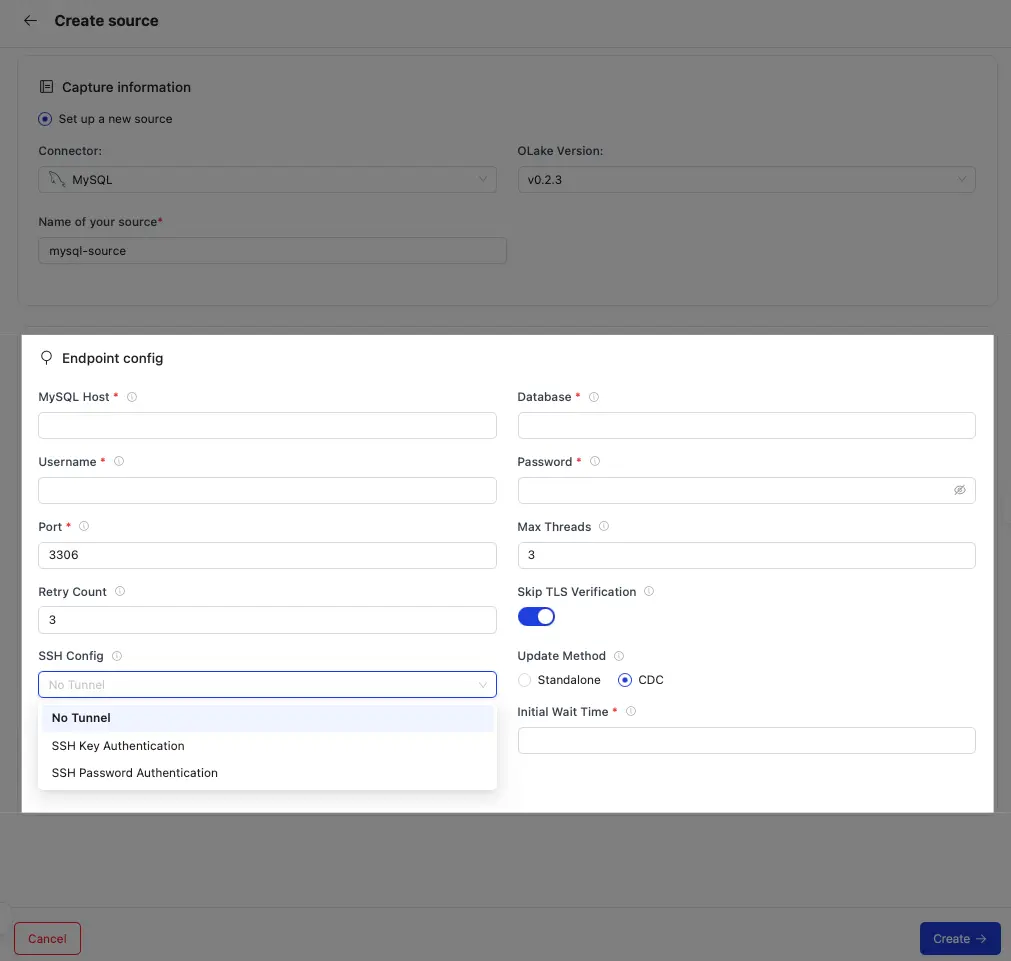

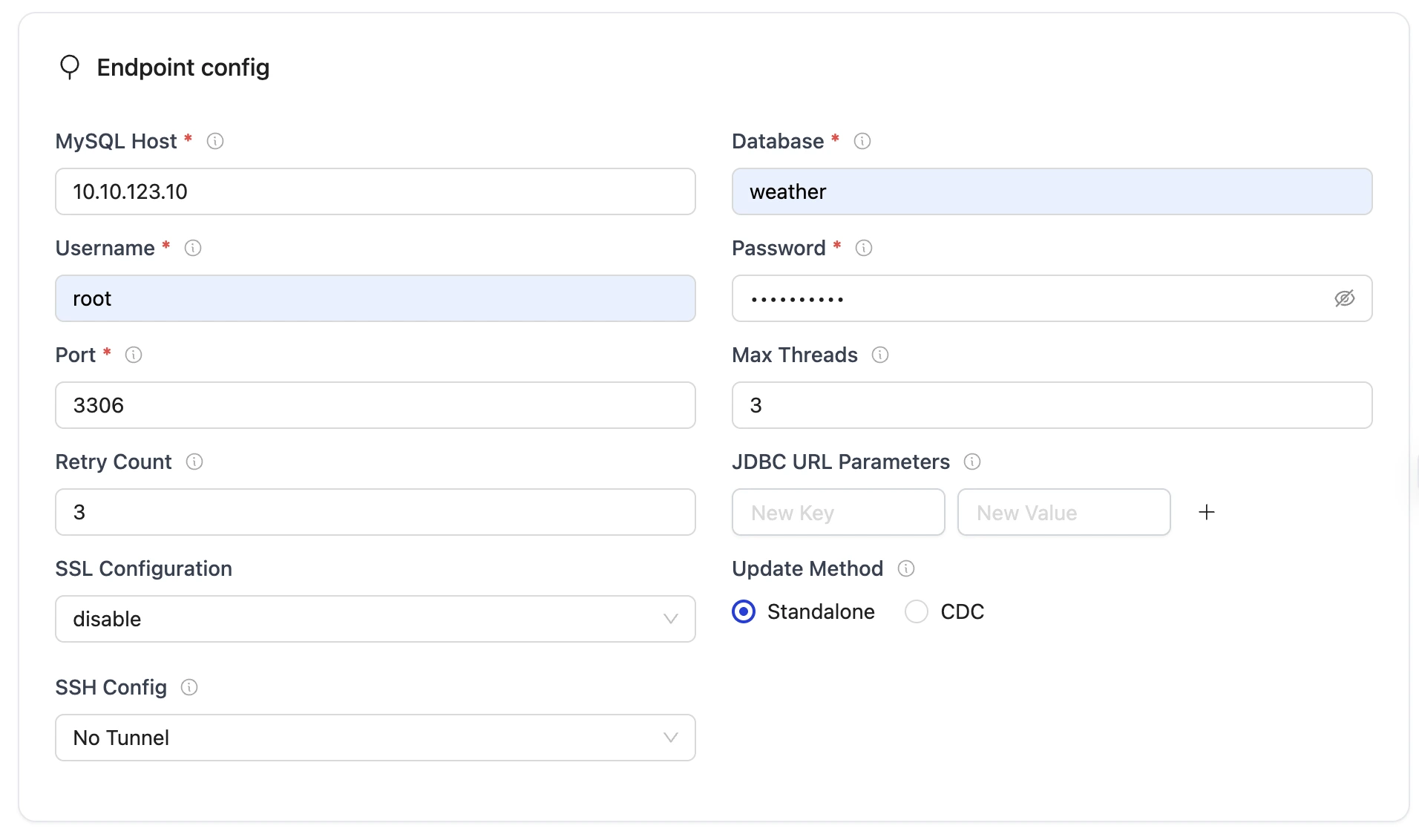

2. Provide Configuration Details

• Enter MySQL credentials.



Field	Description	Example Value
MySQL Host required	List of database host addresses to connect to.	mysql-host
Username required	Username for authenticating with the database.	mysql-user
Password required	Password for the database user.	mysqlpwd
Database	Name of the target database to use.	mysql-db
Port required	Port number on which the database server is listening.	3306
Update Method	Standalone : If only Full refresh and Incremental will be used. CDC : If CDC related modes will be used.	CDC
Initial Wait Time	Maximum duration in seconds to wait before considering the binlog syncer idle.	0
Skip TLS Verification	Indicates whether to skip TLS certificate verification.	false
Max Threads	Maximum number of parallel threads for processing or syncing data.	3
Backoff Retry Count	Number of retry attempts for establishing sync with exponential backoff.	3

3. Test Connection

• Once the connection is validated, the MySQL source is created. Jobs can then be configured using this source.

• In case of connection failure, refer to the Troubleshooting section.

Use OLake CLI for MySQL

1. Create Configuration File

• Once the OLake CLI is set up, create a folder to store configuration files such as source.json and destination.json.

The source.json file for MySQL must contain these mandatory fields.

2. Provide Configuration Details

An example source.json file will look like this:

source.json

    {
        "hosts": "mysql-host",
        "username": "mysql-user",
        "password": "mysqlpwd",
        "database": "my-db",
        "port": 3306,
        "tls_skip_verify": true,
        "update_method": {
          "initial_wait_time": 10
        },
        "max_threads": 5,
        "backoff_retry_count": 4
    }
    ```

Field	Description	Type	Example Value
hosts required	List of database host addresses to connect to.	string	"mysql-host"
username required	Username for authenticating with the database.	string	"mysql-user"
password required	Password for the database user.	string	"mysqlpwd"
database	Name of the target database to use.	string	"my-db"
port required	Port number on which the database server is listening.	integer	3306
update_method required for CDC	Required for CDC sync configuration	object	{"initial_wait_time": 120}
initial_wait_time required for CDC	Maximum duration in seconds to wait before considering the binlog syncer idle.	integer	10
tls_skip_verify	Indicates whether to skip TLS certificate verification.	bool	false
max_threads	Maximum number of parallel threads for processing or syncing data.	integer	3
backoff_retry_count	Number of retry attempts for establishing sync with exponential backoff.	integer	3

Similarly, destination.json file can be created inside this folder. For more information, see destination documentation.

3. Check Source Connection

To verify the database connection following command needs to be run:

check command

docker run --pull=always \
-v "[PATH_OF_CONFIG_FOLDER]:/mnt/config" \
olakego/source-mysql:latest \
check \
--config /mnt/config/source.json

• If OLake is able to connect with MySQL {"connectionStatus":{"status":"SUCCEEDED"},"type":"CONNECTION_STATUS"} response is returned.

• In case of connection failure, refer to the Troubleshooting section.

---

Data Type Mapping

MySQL Data Types	Destination Data Type
int, int unsigned, mediumint, mediumint unsigned, smallint, smallint unsigned, tinyint, tinyint unsigned	int
bigint, bigint unsigned	bigint
float, decimal(10,2)	float
double, double precision, real	double
datetime, timestamp	timestamptz
char, varchar, text, tinytext, mediumtext, longtext, enum, json, bit(1), time	string

timestamptz timezone

OLake always ingests timestamp data in UTC format, independent of the source timezone.

---

Troubleshooting

1. Failed to Get Current Binlog Position

Cause: Binary logging not enabled, wrong format, or insufficient privileges.
Fix:

• Ensure binary logging is enabled:

SHOW VARIABLES LIKE 'log_bin'; // Should return `ON`

• Ensure row-based logging:

SHOW VARIABLES LIKE 'binlog_format'; // Should return `ROW`.

• Grant required privileges:

GRANT REPLICATION CLIENT, REPLICATION SLAVE ON *.* TO 'your_user'@'%';

2. Idle Timeout Reached, Exiting Binlog Syncer

• Cause: No new changes within the configured initial_wait_time.
• Fix: Increase initial_wait_time in the connector configuration or verify data changes in the source database.

3. Column Count Mismatch: Expected X, Got Y

• Cause: Table schema changed after CDC started or incomplete binlog metadata.
• Fix:
  • Ensure full binlog metadata:

  SHOW VARIABLES LIKE 'binlog_row_metadata';
  Should return FULL. To set it:

  SET GLOBAL binlog_row_metadata = 'FULL';
  Update my.cnf or my.ini for persistence.
  • Restart the connector after schema changes.

4. Failed to Get or Split Chunks

• Cause: Table stats not populated or table contains 0 records.

• Fix: Run the following query to populate table statistics:

  ANALYZE TABLE <namespace>.<table_name>;

If the issue is not listed here, post the query on Slack to get it resolved within a few hours.

Changelog

Date of Release	Version	Description
27 August 2025	0.1.11	override default timeout in Discover
