Getting Started with OLake for MongoDB

OLake helps you replicate data from MongoDB into local or S3-based data lakes using Parquet or Iceberg table formats. This tutorial walks you through every step of the setup—from creating necessary configuration files to running your first data sync.

info

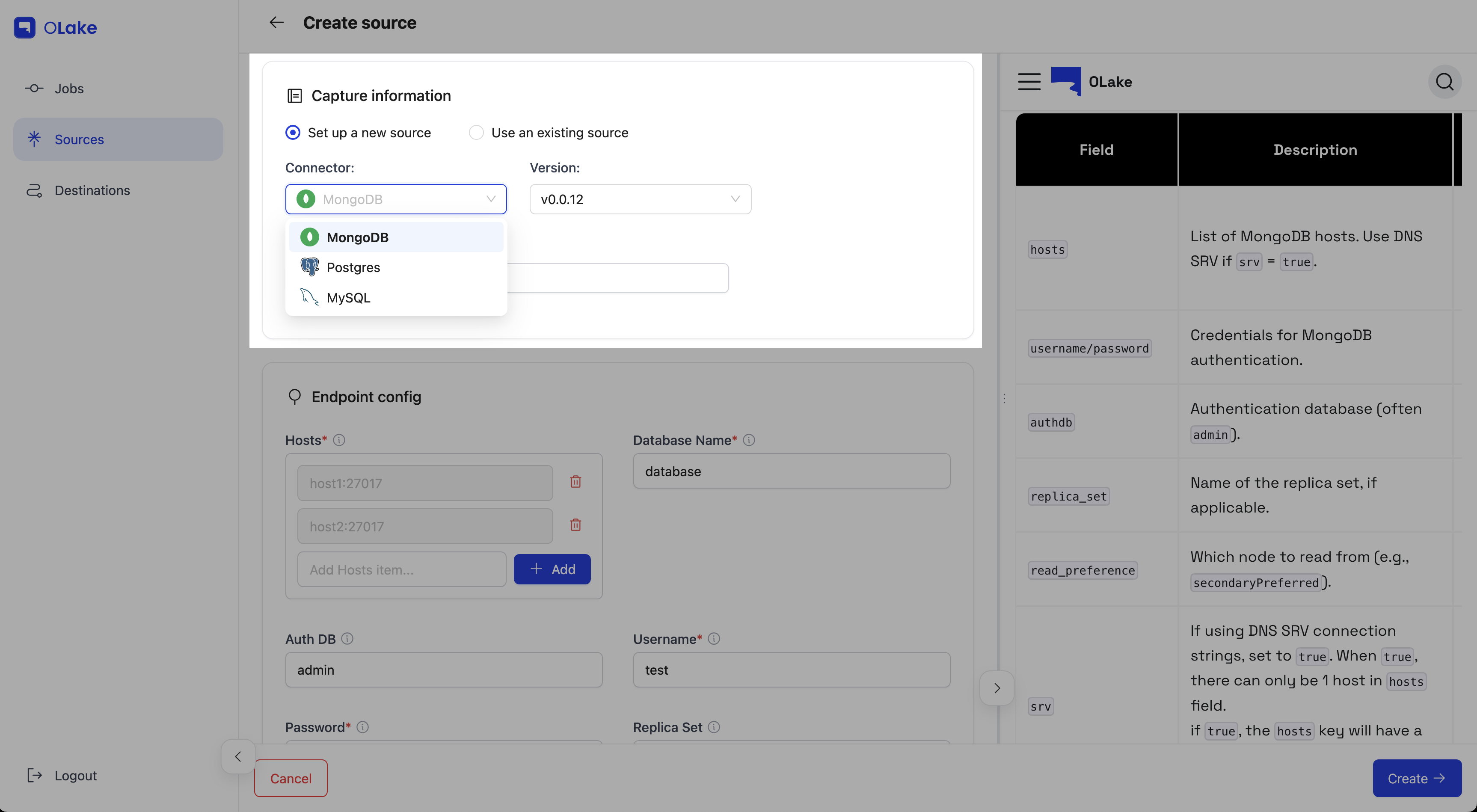

OLake UI is live (beta)! You can now use the UI to configure your MongoDB source, discover streams, and sync data. Check it out at OLake UI regarding how to setup using Docker Compose and running it locally.

olake-source-mongodb

Now, you can use the UI to configure your MongoDB source, discover streams, and sync data.

Refer to MongoDB Connector documentation for more details.

TLDR:​

  1. Create a source.json with your MongoDB connection details.
  2. Create a destination.json with your Writer (Apache Iceberg / AWS S3 / Azure ADLS / Google Cloud Storage) connection details.
  3. Run discover to generate a streams.json of available streams.
  4. Run sync to replicate data to your specified destination.

discover-sync

Introduction & Requirements​

To use OLake, ensure you have:

  • Docker installed and running on your machine.
  • MongoDB credentials (hosts, replica set name, username/password if applicable).
  • AWS S3 credentials (if you plan to write data to AWS S3).
  • Apache Iceberg and Catalog configuration credentials (if you plan to write data to Iceberg tables).

Refer here for more details on Writer requirements.

You will also need:

  • An empty directory to store OLake configuration files and outputs. This guide will refer to it as OLAKE_DIRECTORY.
note

For setting up the project locally on your system and debugging configs to be made, follow this guide - Setting up debugger in VS Code

Step 1: Prepare Your Directory​

  1. Create a new directory on your local machine. Let’s call it OLAKE_DIRECTORY:

    mkdir OLAKE_DIRECTORY

  2. Inside this folder, create two files:

    • destination.json: Specifies your output destination (local or S3).
    • source.json: Contains connection settings for MongoDB (or other databases in the future).
    cd OLAKE_DIRECTORY
    touch destination.json
    touch source.json

Folder Structure:

OLAKE_DIRECTORY/
  ├─ destination.json
  └─ source.json

Directory

1.1 Example destination.json​

Refer to Destination config section for individual writers or refer them here..

DestinationSupportedDocsComments
Apache IcebergYesLink
AWS S3YesLinkSupports both plain-Parquet and Iceberg format writes; requires aws_access_key / IAM role.
AzureYesLink
Google Cloud StorageYes
  • Link (Iceberg)
  • Link (Parquet)
    		• Any S3 protocol compliant object store can work with OLake
    Local FilesystemYesLink

    1.2 Example source.json (MongoDB)​

    Below is a sample source.json for connecting to a MongoDB replica set. Customize each field to match your environment.

    OLAKE_DIRECTORY/source.json
    {
      "hosts": [
        "host1:27017",
        "host2:27017",
        "host3:27017"
      ],
      "username": "username",
      "password": "password",
      "authdb": "admin",
      "replica_set": "rs0",
      "read_preference": "secondaryPreferred",
      "srv": false,
      "database": "database",
      "max_threads": 5,
      "backoff_retry_count": 4,
      "chunking_strategy":""
    }

    Description of above parameters​

    Refer to source configuration for more details on source.json.

    Step 2: Generate a Streams File​

    OLake needs to discover which collections (streams) exist in your MongoDB. This step will create a streams.json listing available streams, schemas, and default sync modes.

    1. Open your terminal in the same directory (say OLAKE_DIRECTORY) containing source.json and destination.json.
    2. Run the discover command using Docker:
    docker run --pull=always  \
      -v "$HOME/PATH_TO_OLAKE_DIRECTORY:/mnt/config" \
      olakego/source-mongodb:latest \
      discover \
      --config /mnt/config/source.json
    info

    PATH_TO_OLAKE_DIRECTORY is the absolute path where you have created the directory [as discussed above]. -v "$HOME/PATH_TO_OLAKE_DIRECTORY:/mnt/config" \ maps to -v /Users/JOHN_DOE_USERNAME/Desktop/projects/OLAKE_DIRECTORY:/mnt/config \ in macOS and Linux systems. Follow the same pattern in other systems.

    Catalog

    Flag/ParameterDescription
    discoverThe OLake sub-command that scans MongoDB schemas.
    --config /mnt/config/source.jsonTells OLake where to find your MongoDB connection details.

    2.1 Understanding the streams.json File​

    After running discover, OLake generates streams.json in OLAKE_DIRECTORY with entries like:

    OLAKE_DIRECTORY/streams.json
    {
        "selected_streams": {
            "otter_db": [
                {
                    "partition_regex": "{now(),2025,YYYY}-{now(),06,MM}-{now(),13,DD}/{string_change_language,,}",
                    "stream_name": "stream_0",
                    "normalization": false,
                    "append_only": false,
                    "chunk_column": "",         //column name to be specified
                },
                {
                    "partition_regex": "{,1999,YYYY}-{,09,MM}-{,31,DD}/{latest_revision,,}",
                    "stream_name": "stream_8",
                    "normalization": false,
                    "append_only": false,
                    "chunk_column": "",         //column name to be specified

                }
            ]
        },
        "streams": [
            {
                "stream": {
                    "name": "stream_8",
                    "namespace": "otter_db",
                    "type_schema": { ... },
                    "supported_sync_modes": [
                        "full_refresh",
                        "cdc"
                    ],
                    "source_defined_primary_key": [
                        "_id"
                    ],
                    "available_cursor_fields": [],
                    "sync_mode": "cdc"
                }
            },
        // ... other streams
      ]
    }
    info

    chunk_column is not yet supported for MongoDB source.

    • selected_streams: The streams / tables / collections OLake will replicate.
    • streams: Metadata for each discovered collection, including schemas and sync modes (e.g., cdc, full_refresh).
    • partition_regex: Specify the regex pattern. For more details, refer to S3 docs
    • normalization: If set to true, OLake will flatten nested JSON structures (Level 1 flattening).
    • append_only: The append_only flag determines whether records can be written to the iceberg delete file. If set to true, no records will be written to the delete file. Know more about delete file: Iceberg MOR and COW
    tip

    Exclude Streams: You can remove unneeded collections by editing selected_streams directly. For instance, deleting "customers" if you only want to sync orders.

    Before (including customers):

    OLAKE_DIRECTORY/streams.json
    "selected_streams": {
            "otter_db": [
                {
                    "stream_name": "order",
                    "partition_regex": "",
                    "normalization": false,
                    "append_only": false,
                    "chunk_column": "",         //column name to be specified
                },
                {
                    "stream_name": "customer",
                    "partition_regex": "",
                    "normalization": false,
                    "append_only": false,
                    "chunk_column": "",         //column name to be specified
                }
            ]
        },

    After (to exclude customers):

    OLAKE_DIRECTORY/streams.json
    "selected_streams": {
            "otter_db": [
                {
                    "stream_name": "order",
                    "partition_regex": "",
                    "normalization": false,
                    "append_only": false,
                    "chunk_column": "",         //column name to be specified
                },
            ]
        },

    Step 3: Run Your First Data Sync​

    Now that you have streams.json, it’s time to sync data from MongoDB to your specified destination (local or S3).

    docker run --pull=always  \
      -v "$HOME/PATH_TO_OLAKE_DIRECTORY:/mnt/config" \
      olakego/source-mongodb:latest \
      sync \
      --config /mnt/config/source.json \
      --catalog /mnt/config/streams.json \
      --destination /mnt/config/destination.json

    First Data Sync

    Flag/ParameterDescription
    syncThe OLake sub-command that runs a data replication (snapshot + CDC).
    --config /mnt/config/source.jsonMongoDB connection settings.
    --catalog /mnt/config/streams.jsonThe file detailing which streams OLake will replicate.
    --destination /mnt/config/destination.jsonThe output configuration file (local or S3).
    • This command performs both the initial snapshot.
    • If you only want a full one-time snapshot, set the stream’s sync_mode to "full_refresh" in streams.json.
    info

    Example: If your sync_mode is "cdc", OLake will:

    1. Do a one-time full snapshot of each selected collection.
    2. Automatically begin listening to MongoDB’s oplog for near real-time changes.

    When the sync finishes, you should see new files either:

    • Locally (in the volume-mapped directory).
    • On S3 (inside the specified s3_path).

    Step 3.1 Synced Data​

    If you are using VS Code, install a parquet reader extension to visualize the parquet file contents that will be made post sync process.

    First Data Sync JSON

    Step 3.2 Synced Data Normalized​

    If you have turned on "normalization": true in streams.json for you streams, expect the below Level 1 Flattening of JSON data.

    Read more about JSON flattening here - Flatten Object Types and Query Arrays in Semi-Structured Nested JSON

    Running the sync command with normalization turned on​

    JSON Normalized logs

    Output Data Dump​

    First Data Sync JSON Normalized

    Step 3.3 Change output directory​

    If you need to output the parquet dump to some other location, you can make changes in the destination.json file by appending the /mnt/config/my_directory

    OLAKE_DIRECTORY/destination.json
    {
        "type": "PARQUET",
           "writer": {
             "local_path": "/mnt/config/my_directory"
        }
      }

    Here, /mnt/config represents the OLAKE_DIRECTORY.

    Step 4: Resume Sync with a State File​

    If a sync is interrupted or you need to resume from a previous checkpoint, OLake automatically saves progress in a state.json file. Use the --state parameter to continue from that point:

    docker run --pull=always  \
      -v "$HOME/PATH_TO_OLAKE_DIRECTORY:/mnt/config" \
      olakego/source-mongodb:latest \
      sync \
      --config /mnt/config/source.json \
      --catalog /mnt/config/streams.json \
      --destination /mnt/config/destination.json \
      --state /mnt/config/state.json

    Resume Sync with a State File

    Flag/ParameterDescription
    --state /mnt/config/state.jsonPoints OLake to an existing state file.
    • state.json typically includes a resume token (for MongoDB) or an offset for other databases, ensuring OLake does not reprocess records it has already synced.

    A typical state.json file has the following structure:

    state.json
    {
      "type": "STREAM",
      "streams": [
        {
          "stream": "stream_8",
          "namespace": "otter_db",
          "sync_mode": "",
          "state": {
            "_data": "8267B34D61000000022B0429296E1404"
          }
        },
        {
          "stream": "stream_0",
          "namespace": "otter_db",
          "sync_mode": "",
          "state": {
            "_data": "8267B34D61000000022B0429296E1404"
          }
        }
      ]
    }

    In this example, "_data": "8267B34D6..." is a MongoDB resume token that tells OLake where to pick up the CDC stream.

    For more details on the state.json configuration, refer the state docs

    Debugging​

    Follow the debugging instructions in this guide - Setting up debugger in VS Code

    Docker Commands & Flags​

    Click here for more info about Docker Commands & Flags

    Next Steps & Wrap-Up​

    1. Check Your Output: Verify your Parquet files (or Iceberg tables) were created either locally or in your S3 bucket.
    2. Explore Schema Evolution: If your MongoDB documents gain new fields, OLake can adapt automatically. Watch for updated schemas in subsequent runs.
    3. Try More Destinations: OLake can also write to Iceberg on S3 (and more in the future). Update your destination config as needed.
    4. Analytics & Querying: Connect your newly created Parquet/Iceberg data to engines like Trino, Spark, or Presto for powerful querying.

    Congratulations! You’ve completed your first OLake data replication. If you encounter any issues or have feedback, please visit our GitHub repository to open an issue or contribute.
