OLake + Iceberg + Presto Playground

A self-contained developer playground to explore lakehouse architecture using Apache Iceberg with:

MySQL as the source database
OLake for schema discovery and CDC ingestion via a UI
MinIO as the object store
Temporal to orchestrate ingestion workflows
Presto to query Iceberg table

🎯 Goal: Let developers experience an Iceberg-native lakehouse end-to-end — without needing to stitch services or write config files — using a single docker-compose up.

✨ Features

CDC from MySQL to Iceberg
Schema discovery and ingestion via OLake UI
Tables automatically created in Iceberg format
Presto queries with no manual registration
Visual orchestration with Temporal UI
2 setup process using Docker Compose

🧱 Architecture

MySQL --> init_cdc_user
	↘︎    	↘︎
data_loader   binlog_checker
  	↓
OLake (UI) --> Iceberg (MinIO)
               	↘︎
               	Presto
OLake Services:
- Temporal
- PostgreSQL (Temporal DB)
- Temporal Worker
- Temporal UI
- Elasticsearch (Temporal search)

⚙️ Prerequisites

Docker + Docker Compose
~8 GB RAM
Git

🏁 Getting Started

1. Clone the Repo

git clone https://github.com/datazip-inc/olake/iceberg-presto-playground.git
cd examples

2. Setup

Edit persistence/config paths (required):
The docker-compose.yml uses /your/chosen/host/path/olake-data as a placeholder for the host directory where Olake's persistent data and configuration will be stored. You must replace this with an actual path on your system before starting the services. You can change this by editing the x-app-defaults section at the top of docker-compose.yml:

x-app-defaults:
  host_persistence_path: &hostPersistencePath /your/host/path

Make sure the directory exists and is writable by the user running Docker (see how to change file permissions for Linux/macOS).

Customizing Admin User (optional):
The stack automatically creates an initial admin user on first startup. The default credentials are:
Username: "admin"
Password: "password"
Email: "test@example.com”
To change these defaults, edit the x-signup-defaults section in your docker-compose.yml:

x-signup-defaults:
username: &defaultUsername "your-custom-username"
password: &defaultPassword "your-secure-password"
email: &defaultEmail "your-email@example.com"

3. Launch the Playground

docker-compose up --build

This will spin up:

MySQL + “init-mysql-tasks” helpers:
”init-mysql-tasks" sets up the following things:
- setup the cdc: sets up replication privileges
- load data: inserts sample data
- health checks: verifies setup
OLake backend services (UI + ingestion pipeline)
Temporal (Orchestration if required)
MinIO: Iceberg object store

Once this is setup, we can spin up Presto to check and query the iceberg table by running the following commands:

cd presto
docker run -d --name my-olake-presto-coordinator
  	--network app-network
  	-p 80:8080
  	-v "$(pwd)/etc:/opt/presto-server/etc"
  	prestodb/presto:latest

The above command will first move to the presto directory where all the necessary config are already setup and the next one spins up the docker container within required network and port.

💻 OLake UI Walkthrough

Access OLake UI: http://localhost:8000
You will be asked to add username and password, please add the same username and password which you added in docker compose file, if you are using default it will be:
username: admin
password: password

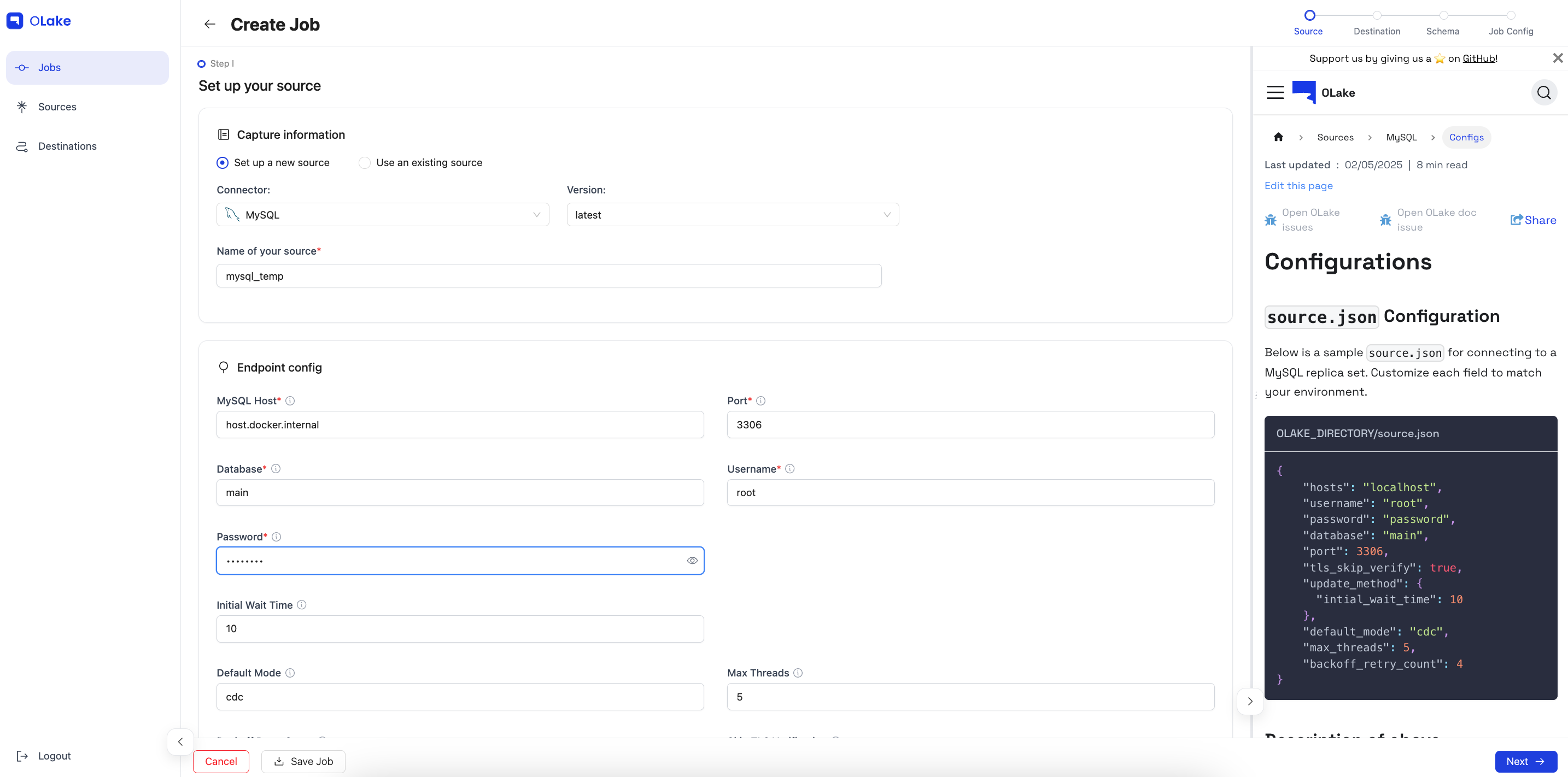

Choose MySQL as the source and name the source it can be as simple as mysql_temp
If you plan to use the MySQL setup within the docker as a source use following config:
To set up a Source connection to the primary_mysql database within Olake:

Host: host.docker.internal
Port: 3306
Database: employees
User: root
Password: password

olake-iceberg-presto-1

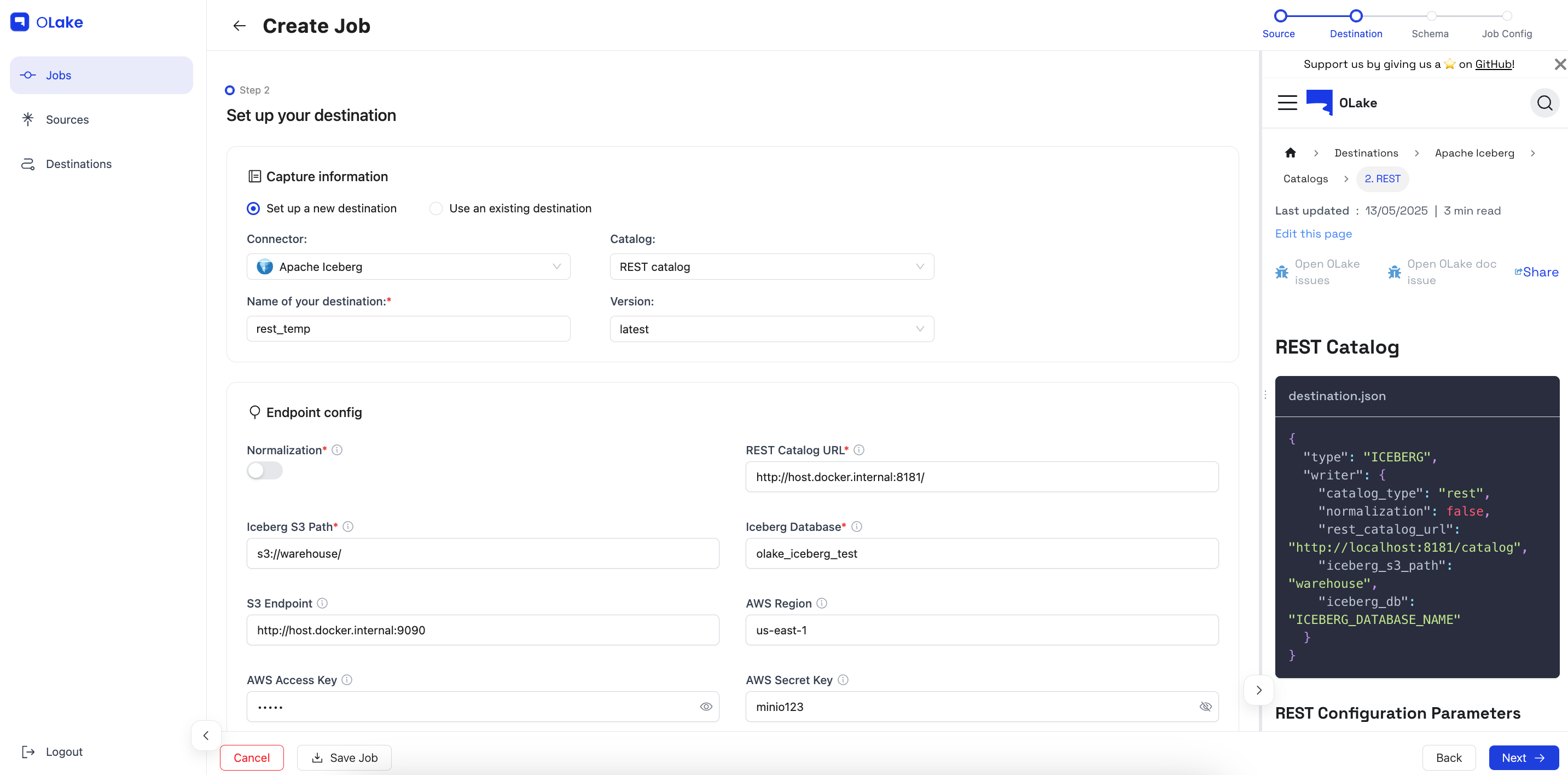

Add Destination Details and choose Iceberg Connector and Rest as the catalog
Use following credentials to sync directly to set up a Destination connection for Apache Iceberg within Olake:

Iceberg REST Catalog URL: http://host.docker.internal:8181
Iceberg S3 Path (example): s3://warehouse/employees/
Iceberg Database (example): employees
S3 Endpoint (for Iceberg data files written by Olake workers): http://host.docker.internal:9090
AWS Region: us-east-1
S3 Access Key: minio
S3 Secret Key: minio123

olake-iceberg-presto-2

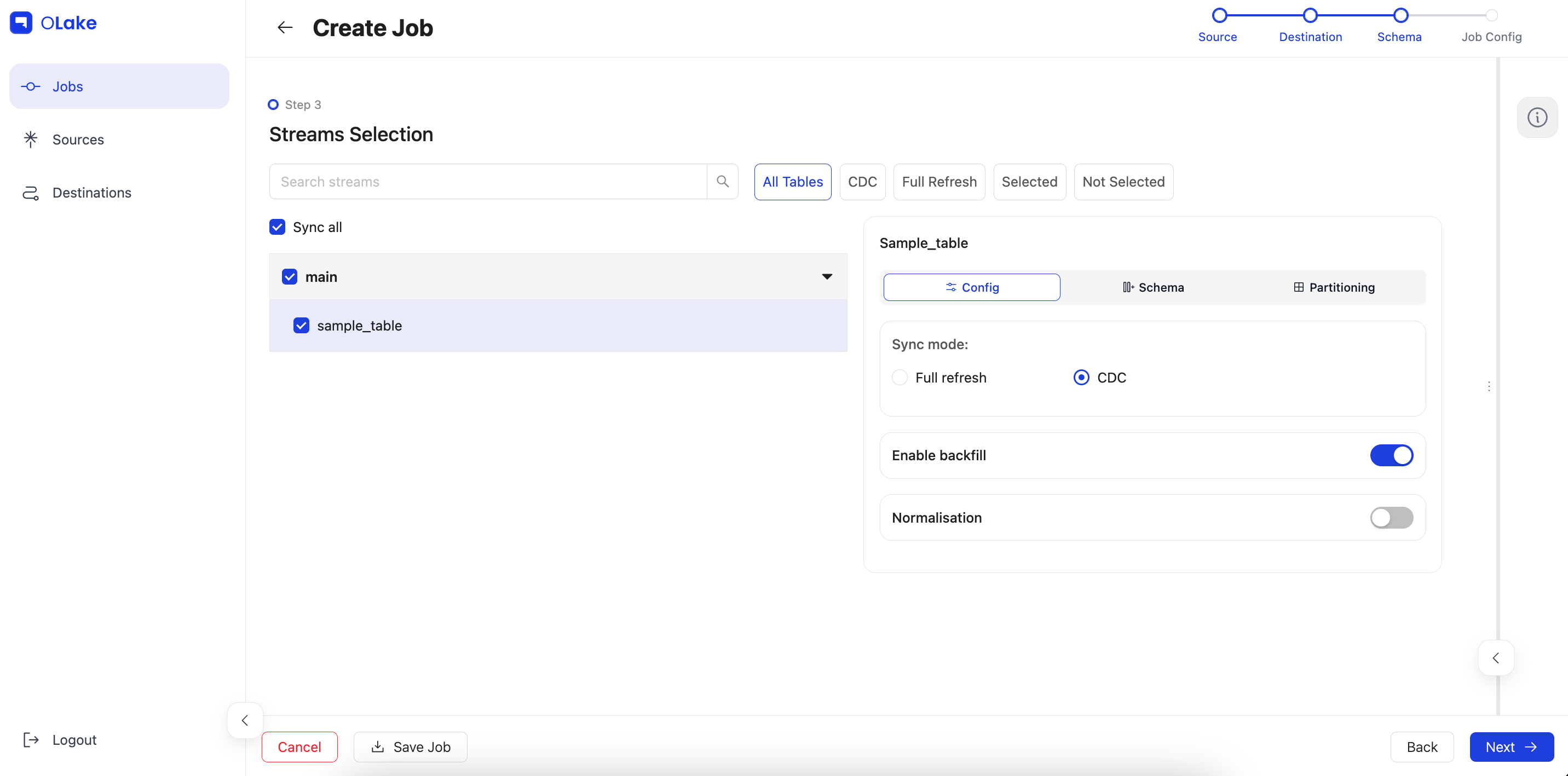

Use the UI to: Select tables & fields

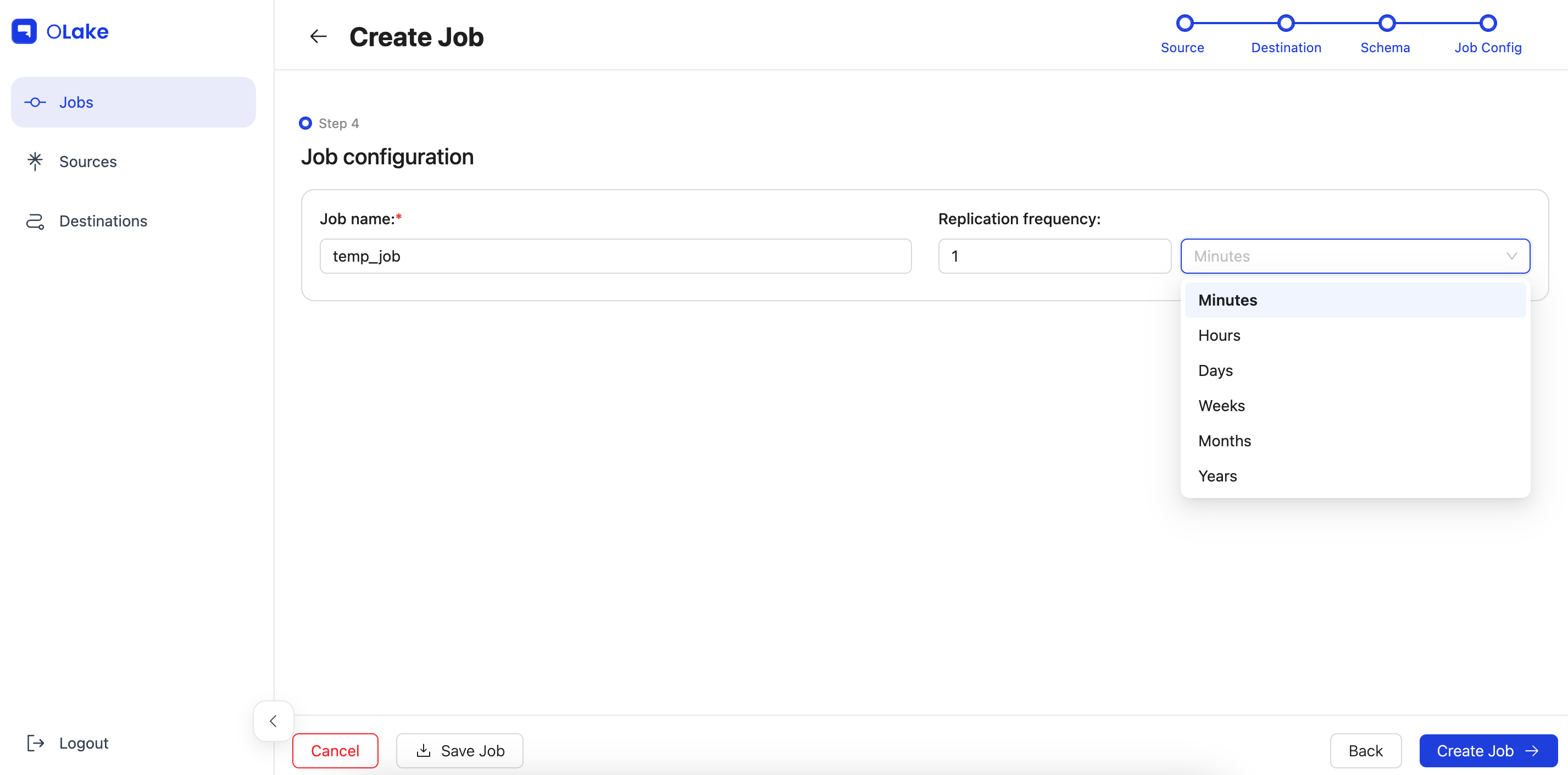

Add the job name and frequency (frequency can be optional if you are only trying to have a one time sync just to check out the iceberg ecosystem):

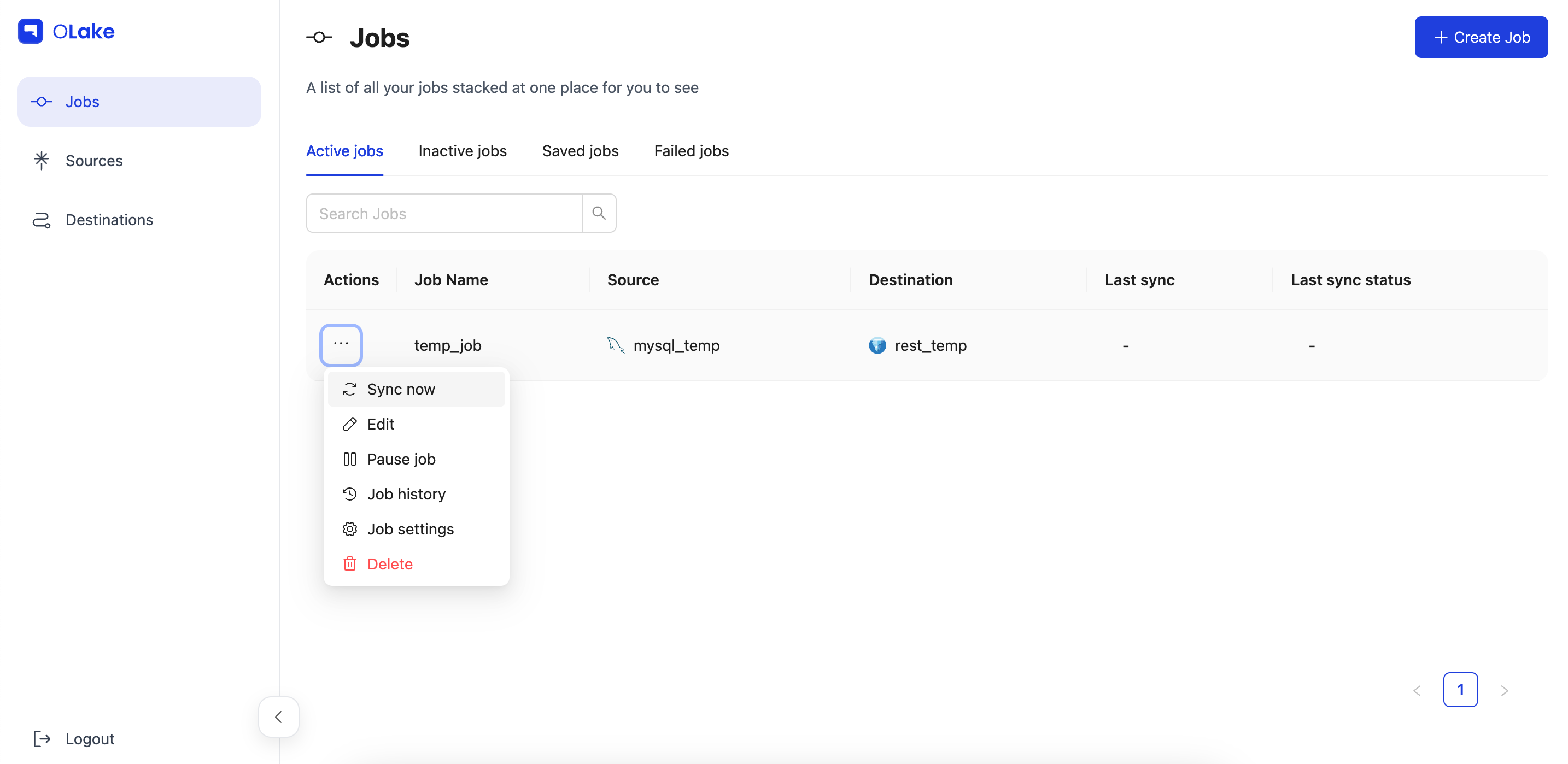

Create the jobs and run the sync manually to start seeing data in Iceberg
(optional) You can check the logs in jobs history section

You don't need to manually register tables — OLake writes directly in Iceberg format and Presto can pick them up automatically.

🔍 Query in Presto

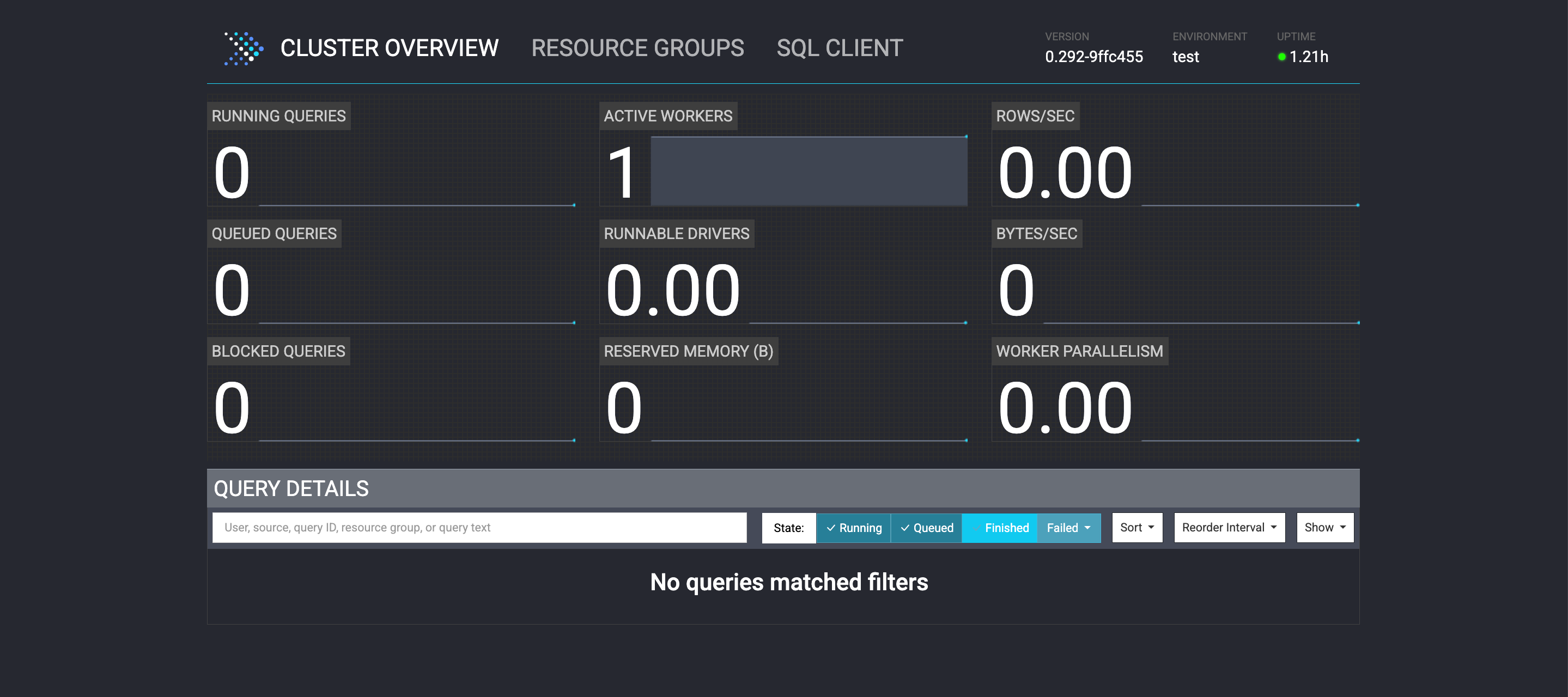

To Use Web UI, access the following in your browser

http://localhost:80/ui/

olake-iceberg-presto-6

You can run the SQL queries in SQL client within this UI or in CLI to be accessed post docker exec in the presto container.

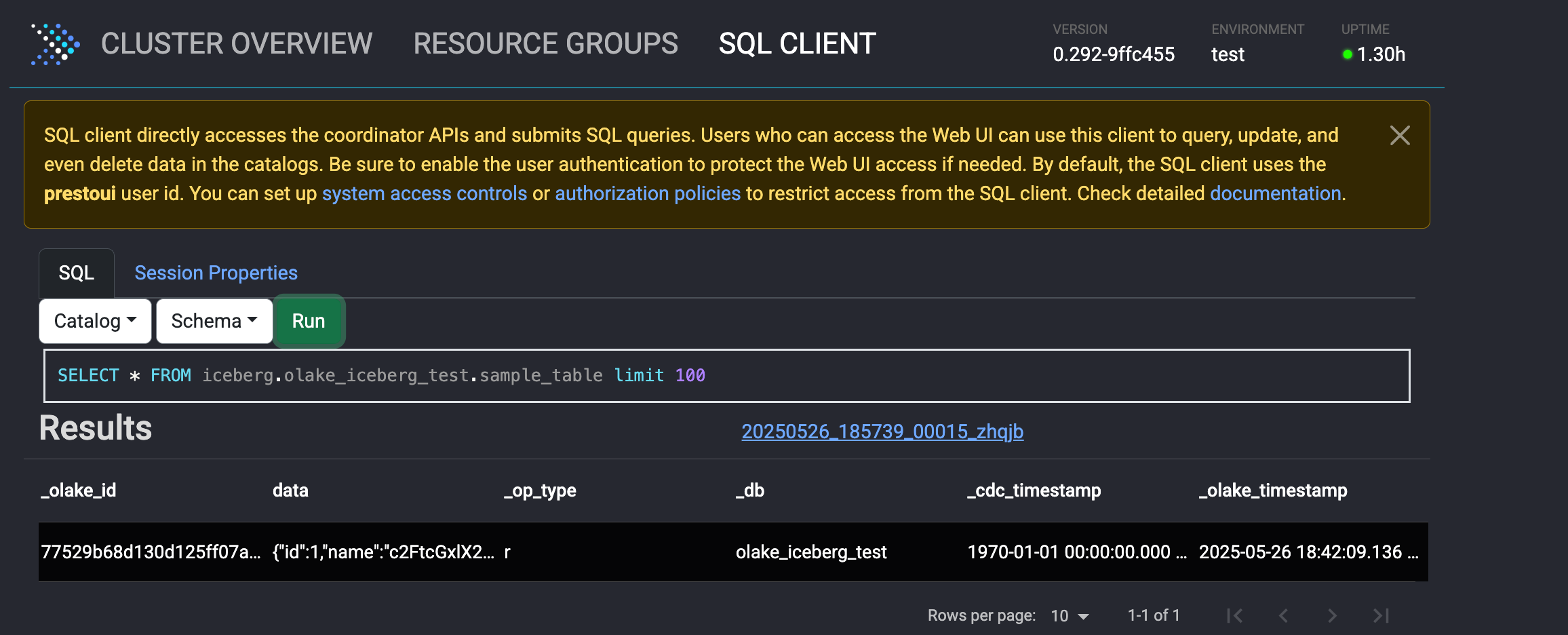

For UI, where “Iceberg” is the catalog and “olake_iceberg_test” is your schema, you can run the SELECT * FROM iceberg.olake_iceberg_test.sample_table LIMIT 10; to checkout the sample table loaded in previous step:

olake-iceberg-presto-7

You’ll be querying live Iceberg tables stored in MinIO and created automatically by OLake.

You can run the presto-cli inside the coordinator container with the below command:

docker exec -it presto-coordinator presto-cli
presto>

After you run the command, the prompt should change from the shell prompt $ to the presto> CLI prompt. Run the SQL statement show catalogs to see a list of currently configured catalogs:

presto> show catalogs;
 Catalog
---------
 iceberg
 system

We'll be working almost exclusively with the "iceberg" catalog and "olake_iceberg_test" schema, so we can employ a USE statement to indicate that all the queries we run will be against tables in this catalog/schema combination unless specificed. Otherwise, we would have to use the fully-qualified table name for every statement (i.e., iceberg.olake_iceberg_test.<table_name>).

presto> USE iceberg.employees;
USE
presto:employees>

After you run the command, the prompt should change from the shell prompt presto> to the presto:olake_iceberg_test> CLI prompt.
You can run SQL commands here like show tables;

presto:employees> show tables;
  	Table
------------------
 dept_emp
 dept_manager
 employees
 olake_test_table
 salaries
 titles

We can query some of the Iceberg metadata information from Presto. Let's look at the hidden "history" table from Presto. Note that the quotation marks are required here.

presto:olake_iceberg_test> select * from "dept_emp$history";
   	made_current_at   	| 	snapshot_id 	|  	parent_id  	| is_current_ancestor
-----------------------------+---------------------+---------------------+---------------------
 2025-05-29 17:11:10.005 UTC | 4569288960464380470 | NULL            	| true
 2025-05-29 17:11:25.881 UTC | 3854975833623379842 | 4569288960464380470 | true
 2025-05-29 17:11:42.358 UTC |  679776884045929590 | 3854975833623379842 | true
 2025-05-29 17:11:58.331 UTC |  989408625431662762 |  679776884045929590 | true
 2025-05-29 17:12:18.400 UTC | 5268185526158132892 |  989408625431662762 | true
 2025-05-29 17:12:43.364 UTC | 8146414278478815017 | 5268185526158132892 | true
 2025-05-29 17:13:12.189 UTC | 3766241920740189413 | 8146414278478815017 | true
 2025-05-29 17:13:31.398 UTC | 8298173997261493168 | 3766241920740189413 | true
 2025-05-29 17:13:47.191 UTC |  159357971009808809 | 8298173997261493168 | true
(1 row)

Query 20250527_084640_00006_pziar, FINISHED, 1 node
Splits: 17 total, 17 done (100.00%)
[Latency: client-side: 434ms, server-side: 405ms] [1 rows, 17B] [2 rows/s, 41B/s]

This shows us that we have a snapshot that was created at the moment we inserted data. We can get more details about the snapshot with the below query:

presto:olake_iceberg_test> SELECT * FROM "dept_emp$snapshots";
    	committed_at     	| 	snapshot_id 	|  	parent_id  	| operation |                                                    	man>
-----------------------------+---------------------+---------------------+-----------+----------------------------------------------------------->
 2025-05-27 09:57:09.749 UTC | 3459967128286778433 | NULL            	| overwrite | s3://warehouse/olake_iceberg_test/sample_table/metadata/sn>
 2025-05-27 09:57:10.482 UTC | 4648278466592688978 | 3459967128286778433 | overwrite | s3://warehouse/olake_iceberg_test/sample_table/metadata/sn>

This gets us a little more information, such as the type of operation, the manifest list file that this snapshot refers to, as well as a summary of the changes that were made as a result of this operation.

Let's go one level deeper and look at the current manifest list metadata:

presto:olake_iceberg_test> SELECT * FROM "dept_emp$manifests";
                                             	path                                             	| length | partition_spec_id |  added_snaps>
------------------------------------------------------------------------------------------------------+--------+-------------------+------------->
 s3://warehouse/olake_iceberg_test/sample_table/metadata/69090e34-d2b5-40ef-88cb-9935ee628352-m0.avro |   7063 |             	0 | 464827846659>
 s3://warehouse/olake_iceberg_test/sample_table/metadata/4bc9994e-a8f2-46a3-85c3-9b57a972afda-m0.avro |   7063 |             	0 | 345996712828>
 s3://warehouse/olake_iceberg_test/sample_table/metadata/69090e34-d2b5-40ef-88cb-9935ee628352-m1.avro |   6988 |             	0 | 464827846659>
 s3://warehouse/olake_iceberg_test/sample_table/metadata/4bc9994e-a8f2-46a3-85c3-9b57a972afda-m1.avro |   6987 |             	0 | 345996712828>

There are other hidden tables as well that you can interrogate. Here is a summary of all hidden tables that Presto can provide:

$properties: General properties of the given table
$history: History of table state changes
$snapshots: Details about the table snapshots
$manifests: Details about the manifest lists of different table snapshots
$partitions: Detailed partition information for the table
$files: Overview of data files in the current snapshot of the table

🧪 Things to Try

Load more data → rerun sync or enable CDC → query again (check out following docs on understanding how to add more data in MySQL: https://olake.io/docs/connectors/mysql/setup/local#4-perform-ddl-and-dml-operations-to-test-olake-optional )

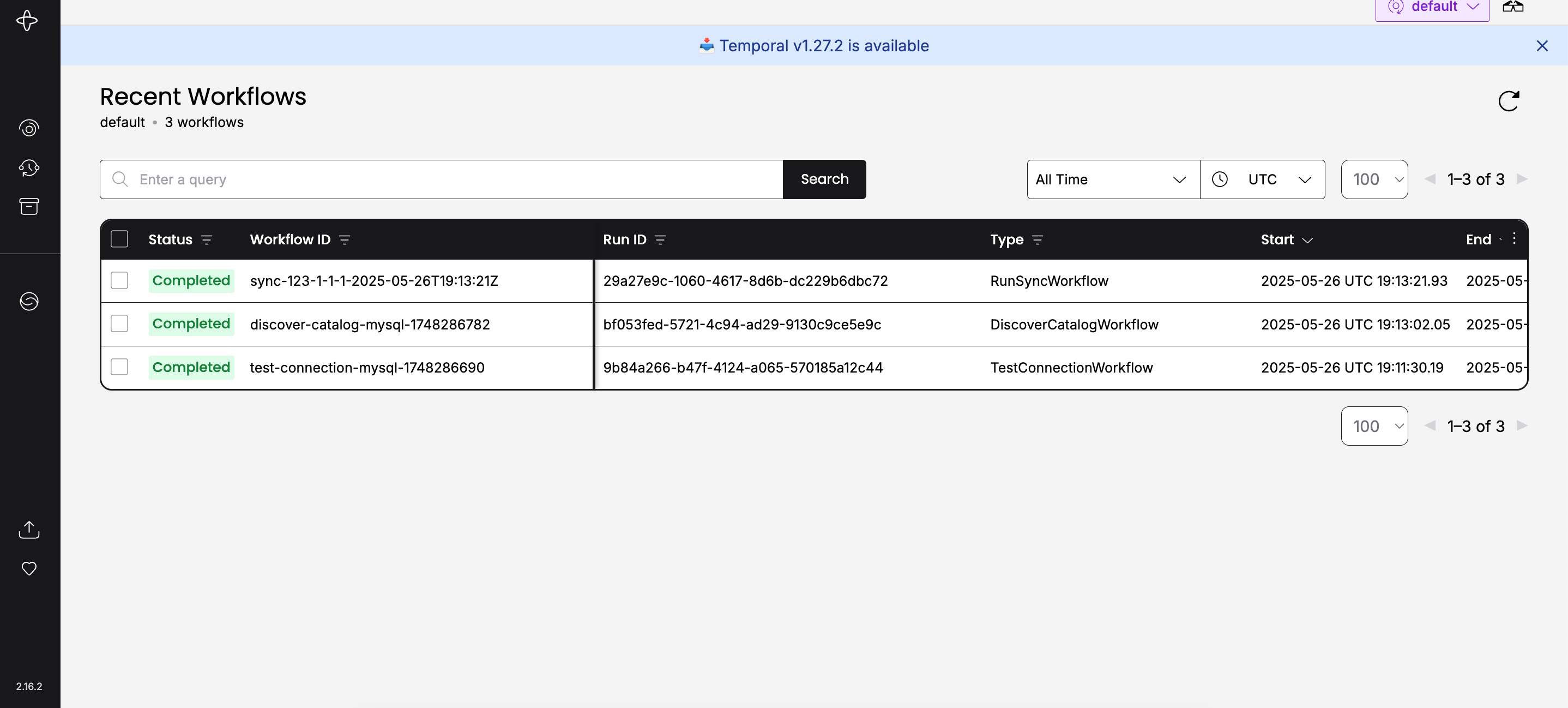

Watch jobs run live in Temporal UI (http://localhost:8081)

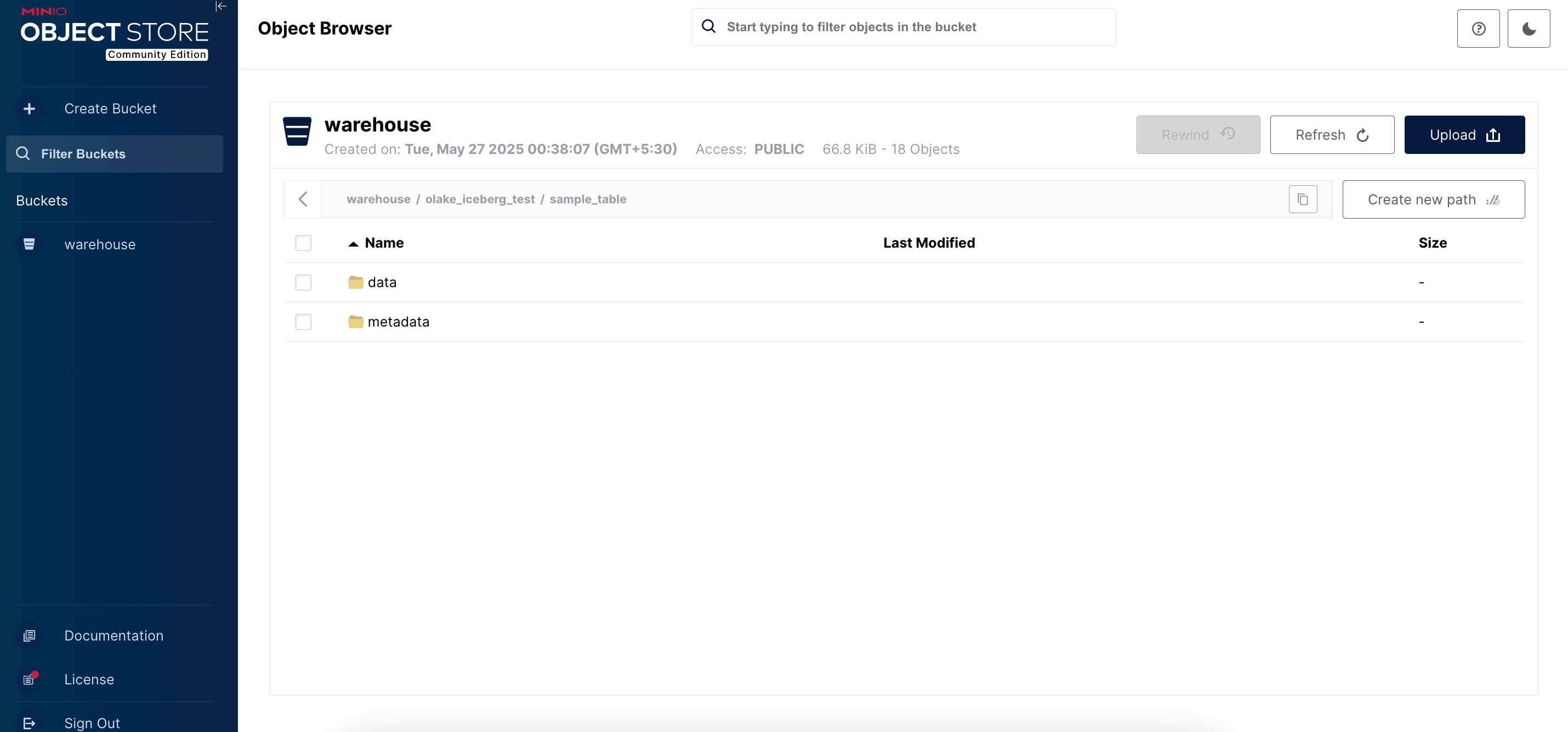

Inspect table files in MinIO (http://localhost:8443)
Iceberg schema evolution
The Iceberg connector also supports in-place table evolution, aka schema evolution, such as adding, dropping, and renaming columns. This is one of Iceberg's key features.

You can add more columns in Primary MySQL DB, which is used as source here via the DDL and DML operations (check out following docs on understanding how to add more data in MySQL: https://olake.io/docs/connectors/mysql/setup/local#4-perform-ddl-and-dml-operations-to-test-olake-optional ) and understand how metadata files change along with addition of new snapshot.
Iceberg Time Travel
Another popular feature of Iceberg is time travel, wherein we can query the table state from a given time or snapshot ID. It's also possible to rollback the state of a table to a previous snapshot using its ID.

**📁 Key Files**
├── docker-compose.yaml    	# Spins up source db, olake, iceberg rest and minio
├── olake-data/            	# to save all the olake data like configs
├── presto
    	├── README.md
    	├── etc
         	├── config.properties
         	├── jvm.config
         	├── catalog
                 	├── iceberg.properties
├── README.md

No manual configuration or table registration needed. Just OLake UI + Presto + Iceberg.

📚 References

Apache Iceberg: https://iceberg.apache.org/docs/latest/
Presto: https://prestodb.io/docs/current/connector/iceberg.html
OLake: https://olake.io/docs

💬 Feedback & Support

We'd love to hear what you build with it.

Need Assistance?

If you have any questions or uncertainties about setting up OLake, contributing to the project, or troubleshooting any issues, we’re here to help. You can:

Your success with OLake is our priority. Don’t hesitate to contact us if you need any help or further clarification!
