JDBC/SQL Catalog Write Guide

OLake integrates with JDBC/SQL catalogs (such as PostgreSQL, MySQL, etc.) to provide full support for Apache Iceberg tables.

With this setup:

• Data is stored in object storage (S3, MinIO, or any S3-compatible system).
• Metadata is managed in a relational database (via JDBC).
• OLake seamlessly writes into Iceberg tables using JDBC + object storage.

---

Prerequisites

Before configuring OLake with JDBC Catalog, ensure the following:

1. Relational Database

• A JDBC-supported database (such as PostgreSQL or MySQL) will serve as the Iceberg metadata catalog.

Required Database Permissions

The JDBC catalog user must have sufficient privileges to manage Iceberg metadata tables. OLake requires the following database permissions:

CREATE TABLE - Creates Iceberg catalog metadata tables (iceberg_tables, iceberg_namespace_properties, etc.) on first connection

INSERT - Adds new table metadata entries, namespace registrations, and commit history records to catalog tables

UPDATE - Modifies existing table metadata during schema evolution, partition updates, and table property changes

DELETE - Removes obsolete metadata entries when tables are dropped or during catalog maintenance operations

SELECT - Reads metadata for table discovery, schema validation, and query planning operations

Database Setup

For detailed database-specific setup instructions and advanced permission configurations, refer to the Apache Iceberg JDBC Catalog documentation.

2. Object Storage

• A bucket for storing Iceberg data files (Parquet + metadata).

---

Configuration

OLake UI

• Before setting up the destination, make sure you have successfully set up the source.

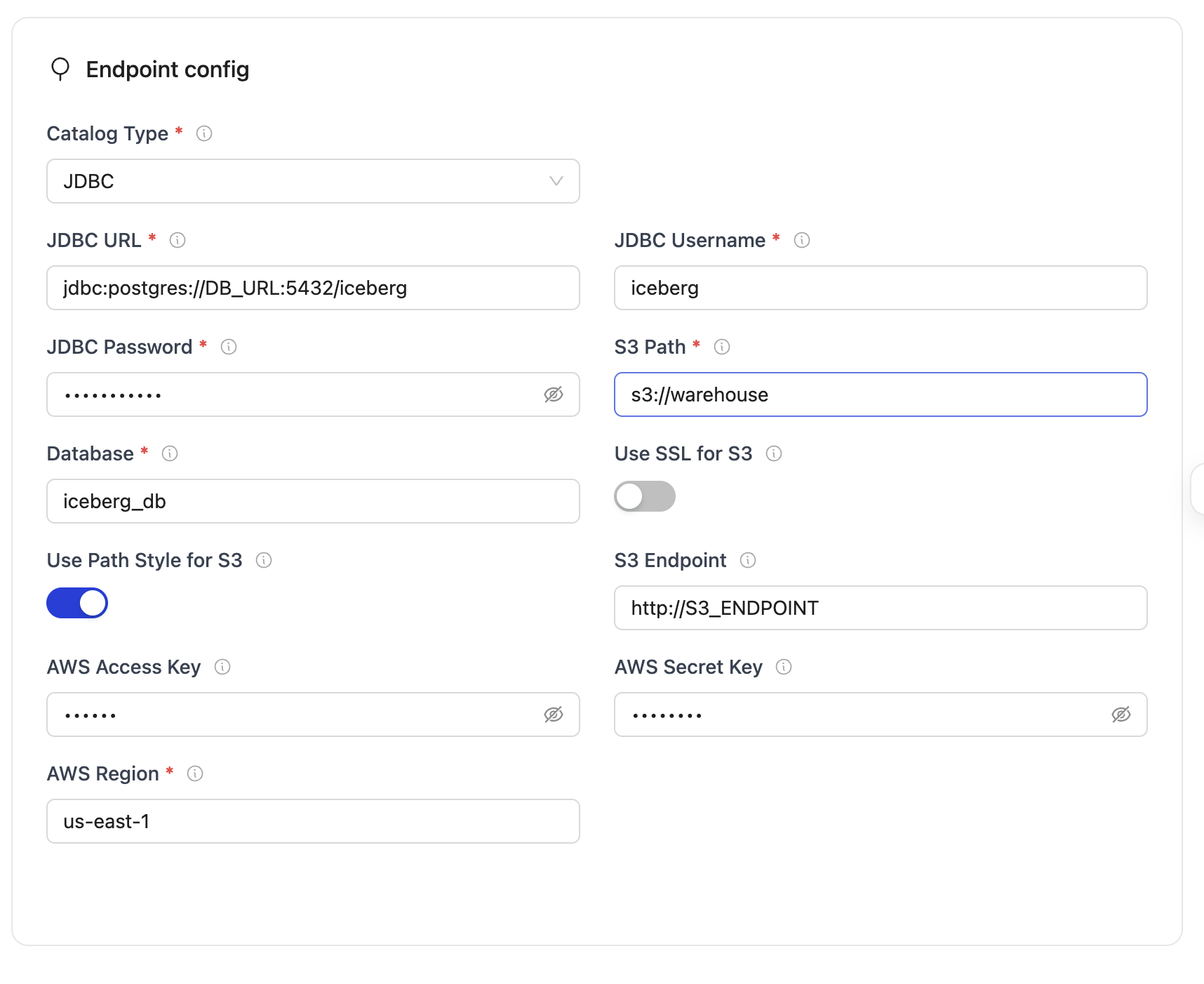

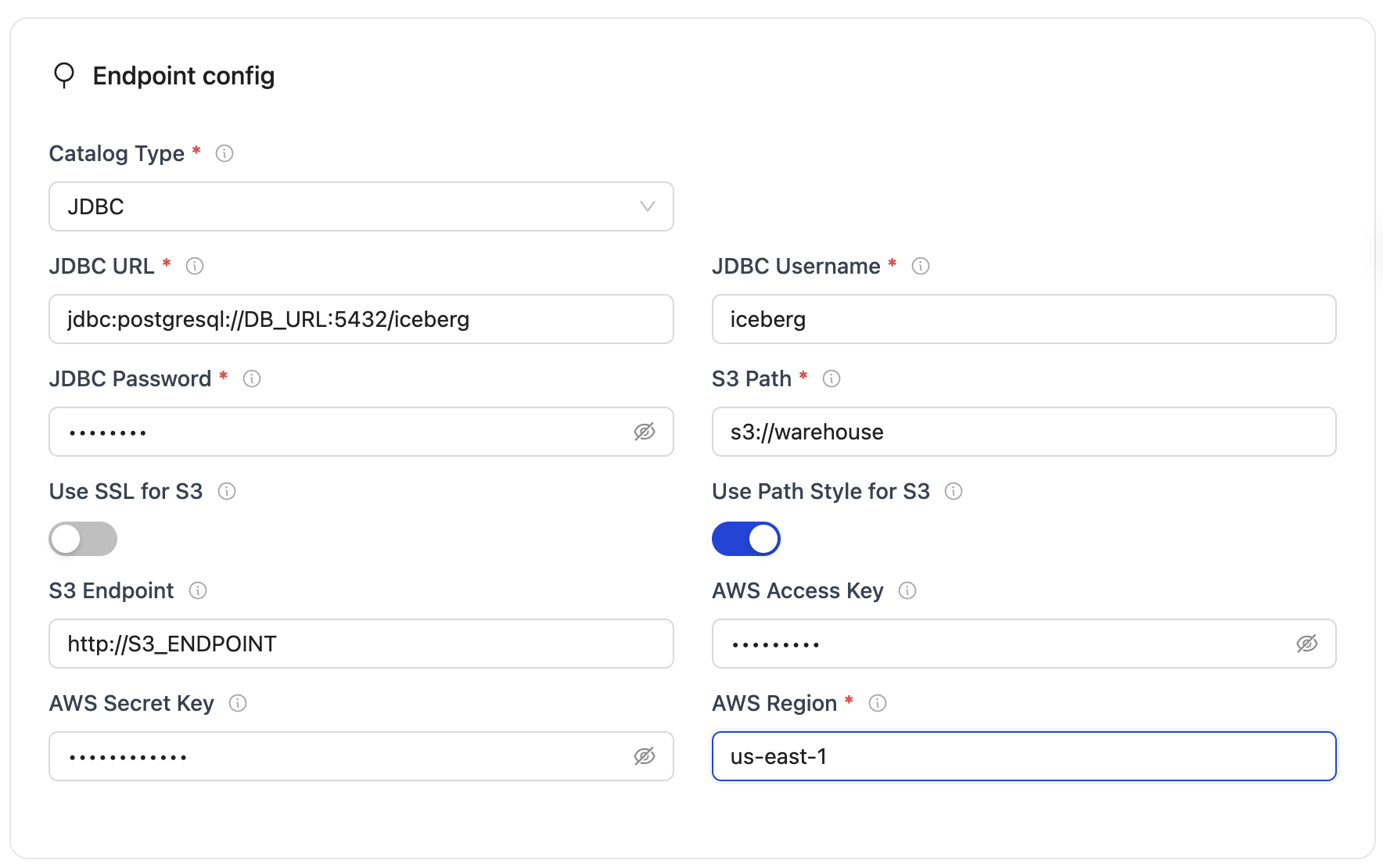

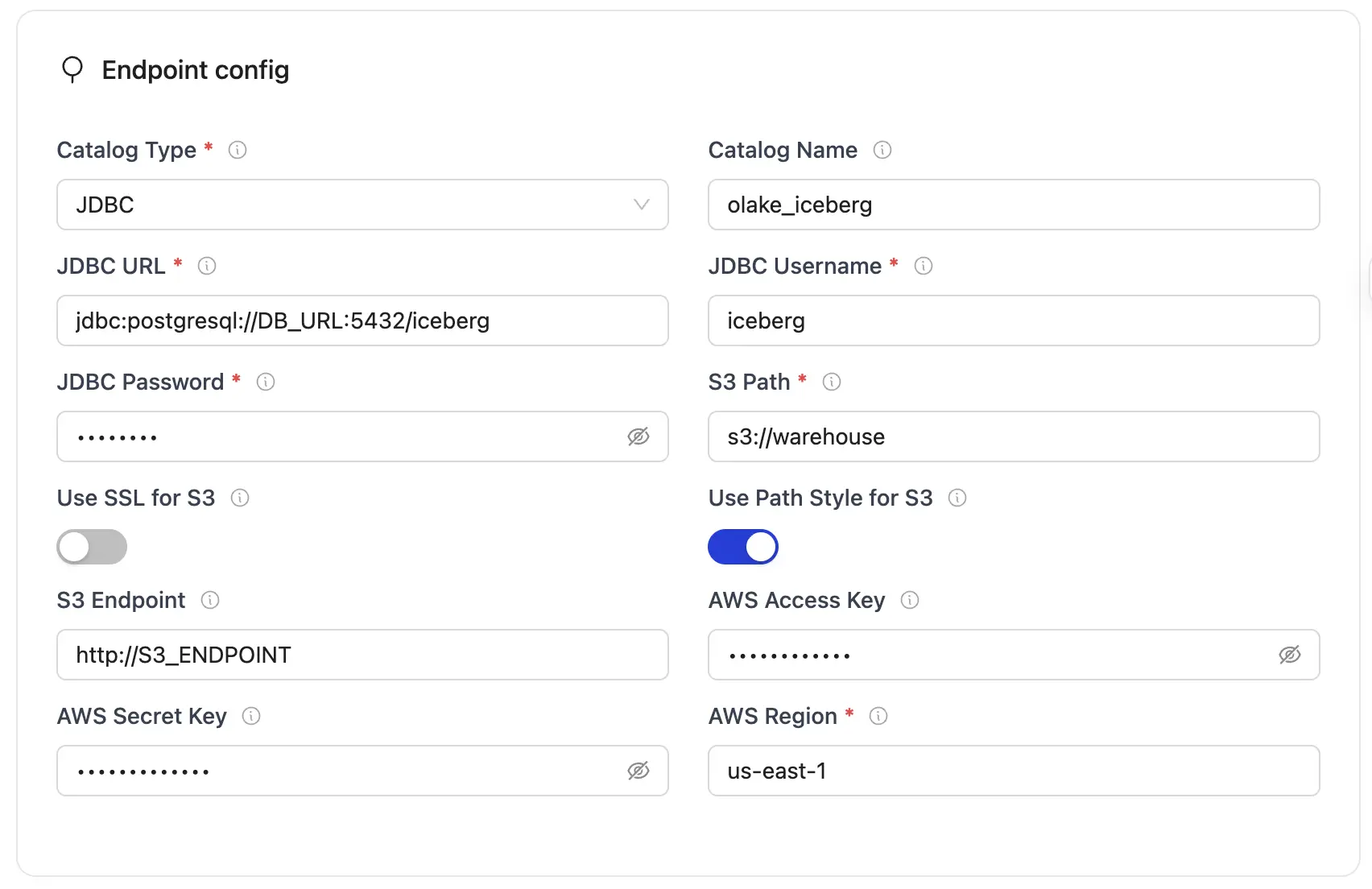

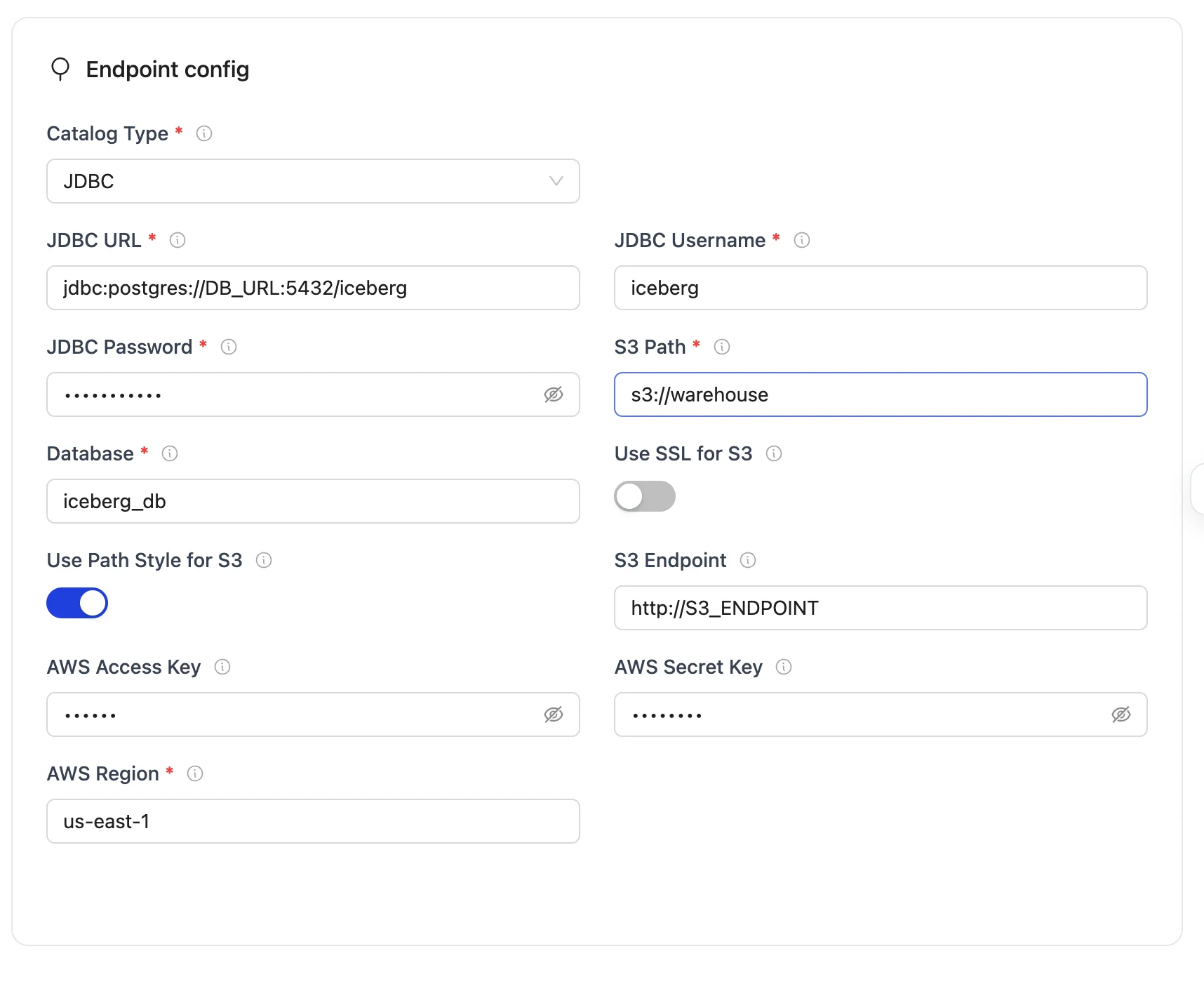

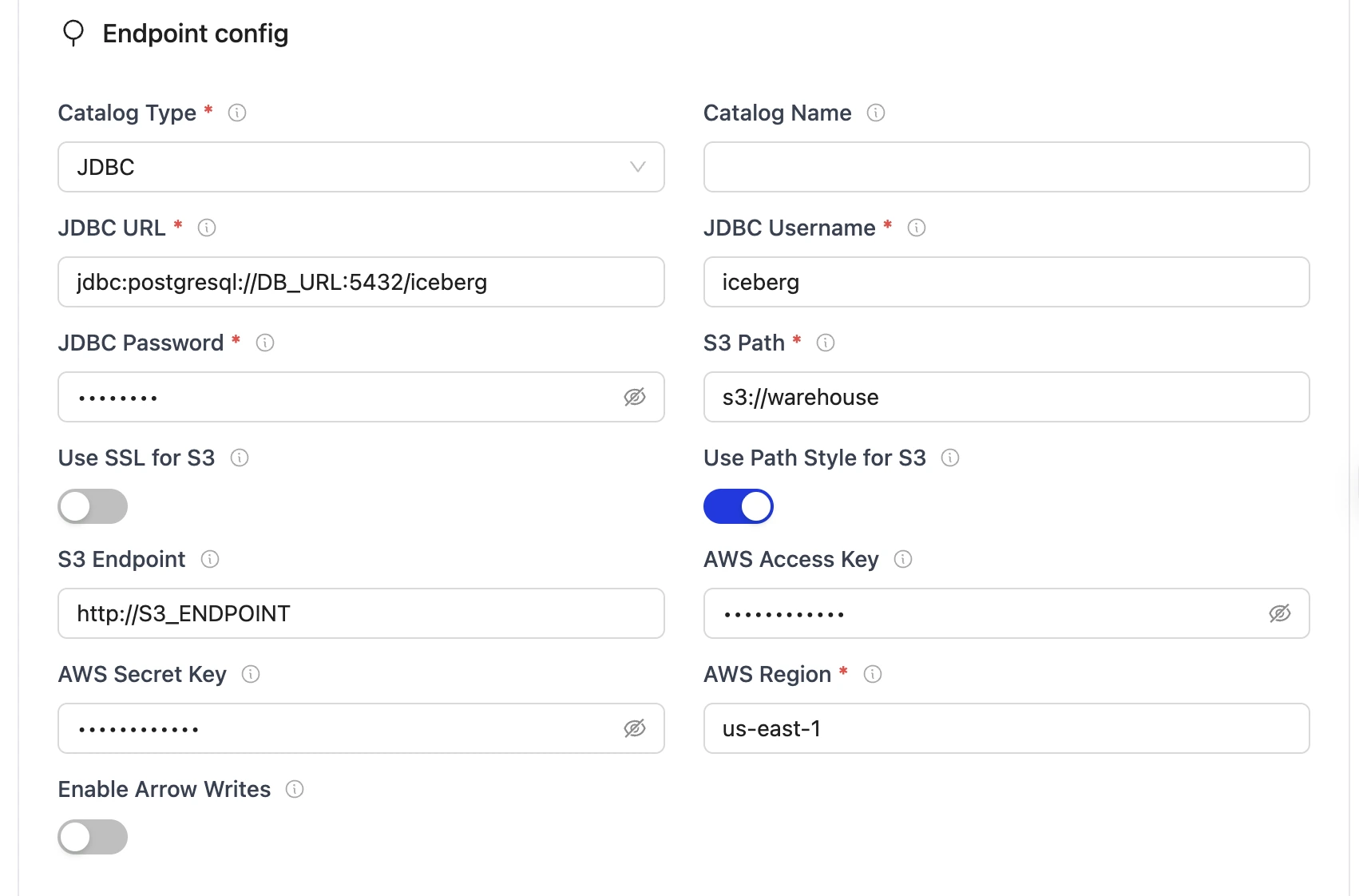

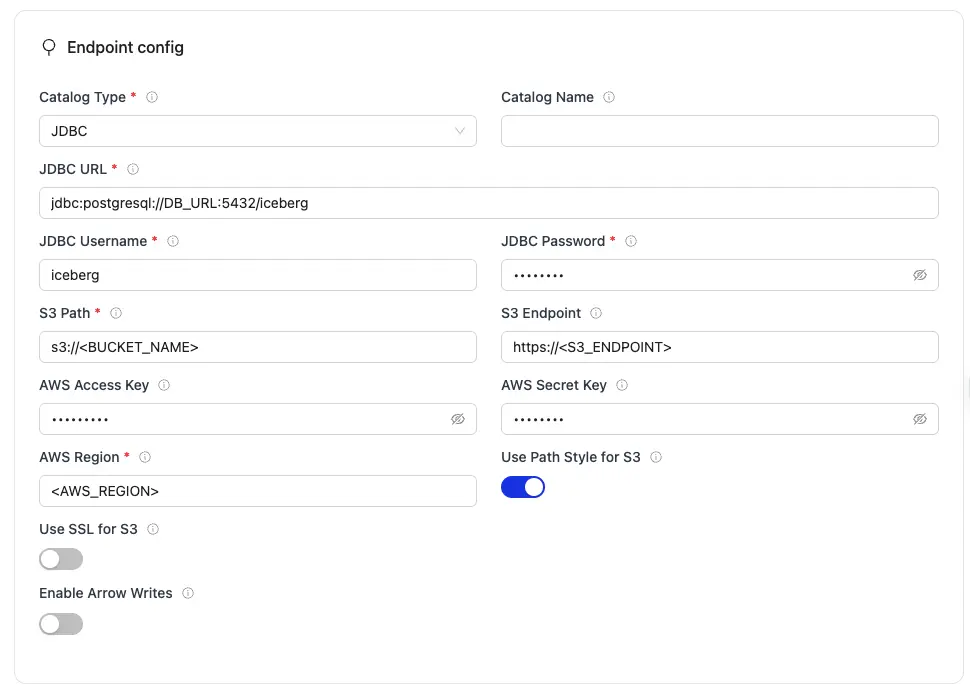

After setting up the source, configure your destination with JDBC Catalog.

Parameter	Sample Value	Description
JDBC URL	jdbc:postgresql://DB_URL:5432/iceberg	JDBC connection string for the catalog database. Replace DB_URL with your database host or use host.docker.internal for local Docker containers.
JDBC Username	iceberg	Database username for JDBC catalog authentication.
JDBC Password	password	Database password for JDBC catalog authentication.
Iceberg S3 Path (Warehouse)	s3://warehouse	S3-compatible storage path for Iceberg table data and metadata files. Use standard s3:// protocol or s3a:// in case you are using Minio.
S3 Endpoint	http://S3_ENDPOINT	S3-compatible storage service endpoint URL. Use http://host.docker.internal:9000 for local MinIO development.
Use SSL for S3	false	Enable SSL/TLS encryption for S3 connections. Disable for local development with HTTP endpoints.
Use Path Style for S3	true	Use path-style S3 addressing (endpoint/bucket/key) instead of virtual-hosted style. Required for MinIO and some S3-compatible services.
AWS Access Key	admin	S3 access key ID for authentication. Use MinIO credentials for local development. Optional if using IAM role attached to running instance/pod.
AWS Region	us-east-1	AWS region identifier for S3 bucket location. Required even for non-AWS S3-compatible services.
AWS Secret Key	password	S3 secret access key for authentication. Use MinIO credentials for local development. Optional if using IAM role attached to running instance/pod.
Iceberg Database	iceberg_db	Target database name in the Iceberg catalog where tables will be created and managed.

Click Next → to test the connection. OLake will verify JDBC + object storage connectivity.

After you have successfully set up the destination: Configure your streams

OLake CLI

Create a destination.json with the following configuration:

destination.json

{
     "type": "ICEBERG",
     "writer": {
          "catalog_type": "jdbc",
          "jdbc_url": "jdbc:postgresql://DB_URL:5432/iceberg",
          "jdbc_username": "iceberg",
          "jdbc_password": "password",
          "iceberg_s3_path": "s3://warehouse",
          "s3_endpoint": "http://S3_ENDPOINT",
          "s3_use_ssl": false,
          "s3_path_style": true,
          "aws_access_key": "admin",
          "aws_region": "us-east-1",
          "aws_secret_key": "password",
          "iceberg_db": "iceberg_db"
     }
}

Parameter	Sample Value	Description
jdbc_url	jdbc:postgresql://DB_URL:5432/iceberg	JDBC connection string for the catalog database. Replace DB_URL with your database host or use host.docker.internal for local Docker containers.
jdbc_username	iceberg	Database username for JDBC catalog authentication.
jdbc_password	password	Database password for JDBC catalog authentication.
iceberg_s3_path	s3://warehouse	S3-compatible storage path for Iceberg table data and metadata files. Use standard s3:// protocol or s3a:// in case you are using Minio.
s3_endpoint	http://S3_ENDPOINT	S3-compatible storage service endpoint URL. Use http://host.docker.internal:9000 for local MinIO development.
s3_use_ssl	false	Enable SSL/TLS encryption for S3 connections. Disable for local development with HTTP endpoints.
s3_path_style	true	Use path-style S3 addressing (endpoint/bucket/key) instead of virtual-hosted style. Required for MinIO and some S3-compatible services.
aws_access_key	admin	S3 access key ID for authentication. Use MinIO credentials for local development.
aws_region	us-east-1	AWS region identifier for S3 bucket location. Required even for non-AWS S3-compatible services.
aws_secret_key	password	S3 secret access key for authentication. Use MinIO credentials for local development.
iceberg_db	iceberg_db	Target database name in the Iceberg catalog where tables will be created and managed.

Run the sync command using this destination.json.

After you have successfully set up the destination: Run the Discover command

Connection Testing

OLake automatically validates:

• JDBC connectivity & authentication
• Object storage access (S3/MinIO)
• Database creation & access permissions

---

Local Development Setup

Here's an example docker-compose.yml for OLake with PostgreSQL JDBC Catalog + MinIO:

version: "3.9"

services:
  postgres:
    image: postgres:15
    container_name: iceberg-postgres
    environment:
      POSTGRES_USER: iceberg
      POSTGRES_PASSWORD: password
      POSTGRES_DB: iceberg
    ports:
      - "5432:5432"
    healthcheck:
      test: ["CMD", "pg_isready", "-U", "iceberg", "-d", "iceberg"]
      interval: 2s
      timeout: 10s
      retries: 5
      start_period: 10s
    volumes:
      - ./data/postgres-data:/var/lib/postgresql/data
    networks:
      - iceberg_net

  minio:
    image: minio/minio:RELEASE.2025-04-03T14-56-28Z
    container_name: minio
    environment:
      - MINIO_ROOT_USER=admin
      - MINIO_ROOT_PASSWORD=password
      - MINIO_DOMAIN=minio
    networks:
      iceberg_net:
        aliases:
          - warehouse.minio
    ports:
      - 9001:9001
      - 9000:9000
    volumes:
      - ./data/minio-data:/data
    command: [ "server", "/data", "--console-address", ":9001" ]

  mc:
    depends_on:
      - minio
    image: minio/mc:RELEASE.2025-04-03T17-07-56Z
    container_name: mc
    networks:
      iceberg_net:
    environment:
      - AWS_ACCESS_KEY_ID=admin
      - AWS_SECRET_ACCESS_KEY=password
      - AWS_REGION=us-east-1
    entrypoint: |
      /bin/sh -c "
      until (/usr/bin/mc config host add minio http://minio:9000 admin password) do echo '...waiting...' && sleep 1; done;
      if ! /usr/bin/mc ls minio/warehouse > /dev/null 2>&1; then
        /usr/bin/mc mb minio/warehouse;
        /usr/bin/mc policy set public minio/warehouse;
      fi;
      tail -f /dev/null
      "

networks:
  iceberg_net:
    name: iceberg_net

volumes:
  postgres-data:
  minio-data:

---

Troubleshooting

The OLake JDBC Catalog connector stops immediately upon encountering errors to ensure data accuracy. Below are common issues and their fixes:

• Connection Refused to Host:Port
  • Cause: JDBC database not accessible or network connectivity issues.
  • Fix:
    • Verify database is running and accessible:

      psql -h <host> -p <port> -U <username> -d <database>
    • Check jdbc_url format and port configuration.
    • Use host.docker.internal instead of localhost when running in Docker.
    • Ensure database accepts connections from OLake's IP address.
• Authentication Failed for User
  • Cause: Invalid database credentials or insufficient user permissions.
  • Fix:
    • Verify jdbc_username and jdbc_password are correct.
    • Ensure user exists in the database and has required permissions:

      GRANT CREATE, INSERT, UPDATE, DELETE, SELECT ON DATABASE <database_name> TO <username>;
• SSL Connection Error
  • Cause: SSL/TLS configuration mismatch between client and server.
  • Fix:
    • For S3: Ensure s3_use_ssl matches endpoint protocol (http/https).
    • For JDBC: Add SSL parameters to jdbc_url for non-SSL databases:

      "jdbc_url": "jdbc:postgresql://<host>:<port>/<database>?sslmode=disable"
• NoSuchBucket Error
  • Cause: S3 bucket specified in configuration doesn't exist.
  • Fix:
    • Create the bucket specified in iceberg_s3_path:

      mc mb <alias>/<bucket_name>
    • Verify bucket name matches exactly (case-sensitive).
    • Ensure bucket is in the correct region.
• Table Already Exists Error
  • Cause: Iceberg metadata table conflicts in the catalog database.
  • Fix:
    • Drop existing tables if safe to do so.
    • Use different iceberg_db name in configuration.
    • Clear existing metadata tables manually if needed.
• Path Style Access Error
  • Cause: S3 addressing configuration issue with MinIO or non-AWS S3.
  • Fix:
    • Set s3_path_style: true for MinIO and non-AWS S3 services.
    • Use correct endpoint format without bucket name in the URL.
